SUMAK W/M HYBIRD INVERTER FT8648EMH 8600VA/48V 8.6KW
حدد الخيارات
- Model:FT8648EMH–8.6KW/48V Hybrid Solar Inverter
- Rated Output Power:8.6KW
- Rated Apparent Power:8600VA
- Output Waveform:Pure Sine Wave
- AC Output Voltage:230V AC ±5%
- Output Frequency:50/60Hz (Auto Detection)
- Peak Efficiency:≥ 93%
- Battery System Voltage:48V DC
- Supported Battery Types:Lead Acid (AGM, GEL, Wet)
- Supported Battery Types:Lithium Batteries
- Max Total Charging Current:Up to 180A (Solar + AC)
- Battery Protection:Overcharge / Deep Discharge / Reverse Polarity / Over-temperature
- Maximum PV Input Power:8600W – 9000W
- MPPT Charge Controller:Built-in MPPT
- Max MPPT Charging Current:120A
- PV Input Voltage Range:120V – 450V DC
- Max PV Open Circuit Voltage (VOC):450V DC
- MPPT Efficiency:≥ 98%
- AC Input Voltage:230V AC
- Input Voltage Range:90V – 280V
- AC Charging Current:Up to 60A (adjustable)
- Charging Priority:Solar / Grid / Hybrid (Programmable)
- Display Type:LCD with LED Indicators
The FT8648EMH 8.6KW / 48V Hybrid Solar Inverter is a premium-grade, multi-functional inverter designed for high-demand residential, commercial, and industrial applications. Built with next-generation DSP technology, it integrates a pure sine wave inverter, an advanced MPPT solar charge controller, and a high-capacity AC charger into a single intelligent power management system.
This model is engineered to support larger solar arrays, heavy-duty appliances, and continuous operation under challenging environmental conditions. Its hybrid functionality ensures seamless power switching between solar, battery, and grid, delivering uninterrupted energy with maximum efficiency. With flexible charging modes, wide PV compatibility, and lithium battery support, the FT8648EMH stands out as a reliable, long-life solution for off-grid and hybrid solar installations.
Key Features
✔ High 8.6KW Load Capacity
Capable of powering heavy loads such as:
-
Air conditioners
-
Deep freezers
-
Refrigerators
-
Pumps
-
Office equipment
-
Industrial tools
Advanced MPPT Solar Technology
Extracts maximum energy from the solar array with 98% MPPT efficiency.
Hybrid Operation
Smart power priority:
-
Solar → Battery → Grid
-
Fully programmable from the front panel.
Wide PV Voltage Range
Supports long string configurations, reducing cable size and installation costs.
Pure Sine Wave Output
Ensures safety and optimal performance for sensitive appliances.
Lithium Battery Compatible
Fully programmable charging parameters for LiFePO4 and other lithium technologies.
Seamless Auto Transfer
Uninterrupted power switching ensures protection for IT equipment and sensitive electronics.
Intelligent Protection System
Includes:
-
Overload protection
-
Short-circuit protection
-
Reverse polarity protection
-
Battery safety algorithms
-
Over-temperature shutdown
Smart Monitoring
Optional Wi-Fi/GPRS allows remote real-time monitoring of system performance.
Display & Communication
-
Display Type: LCD with LED Indicators
-
Parameters Shown:
-
PV voltage, battery voltage, AC input/output
-
Load percentage
-
Charging/Discharging status
-
-

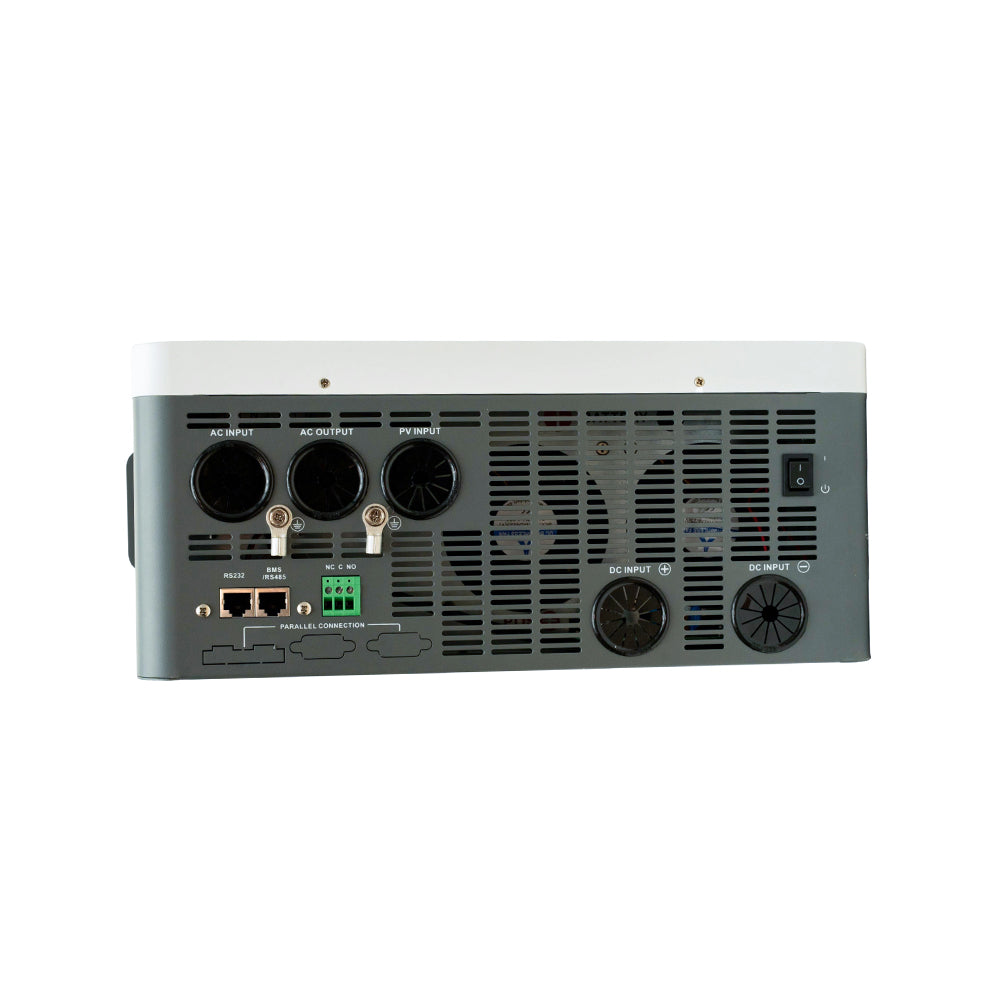

Communication Ports:
-
USB
-
RS-232
-
Optional Wi-Fi / GPRS Monitoring
-
Environmental & Physical
-
Operating Temperature: 0°C to 50°C
-
Humidity: 5% – 95% (Non-condensing)
-
Cooling System: Intelligent variable-speed fan
-

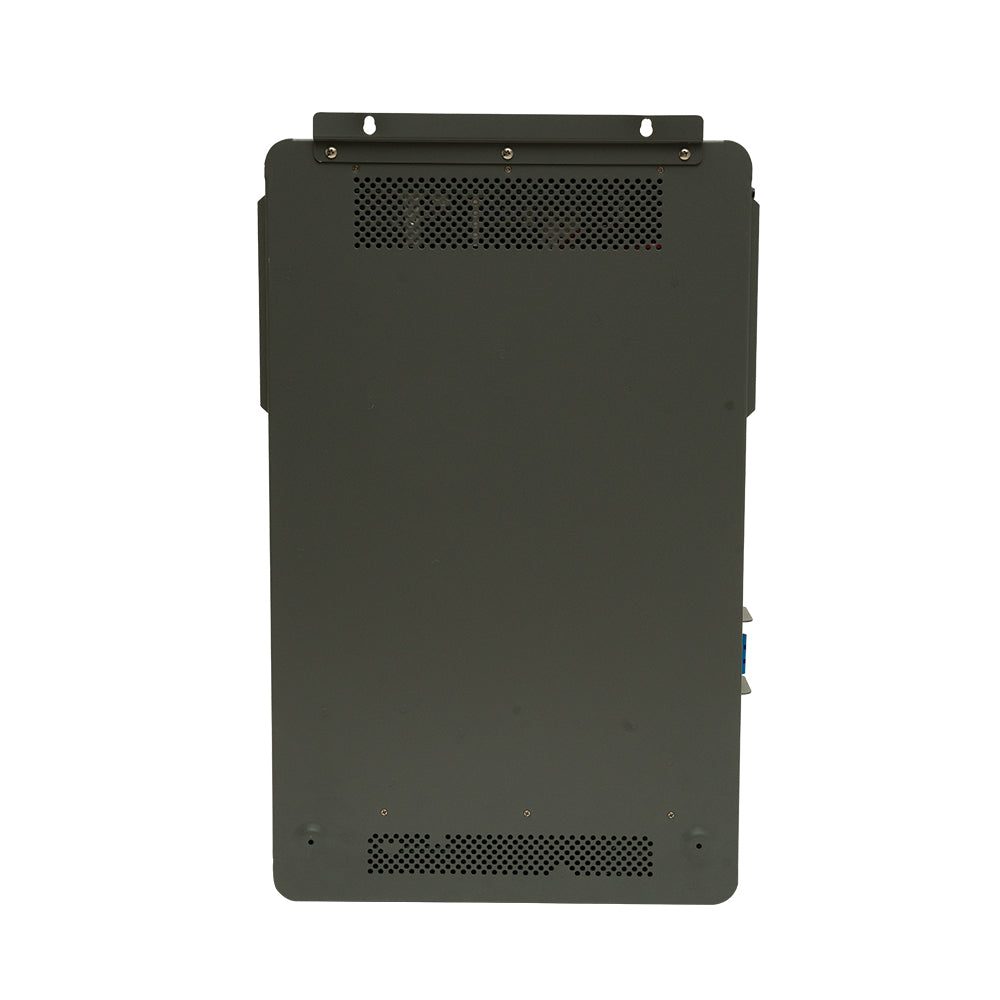

Mounting: Wall-mount / Vertical
-
Enclosure: Powder-coated metal body
