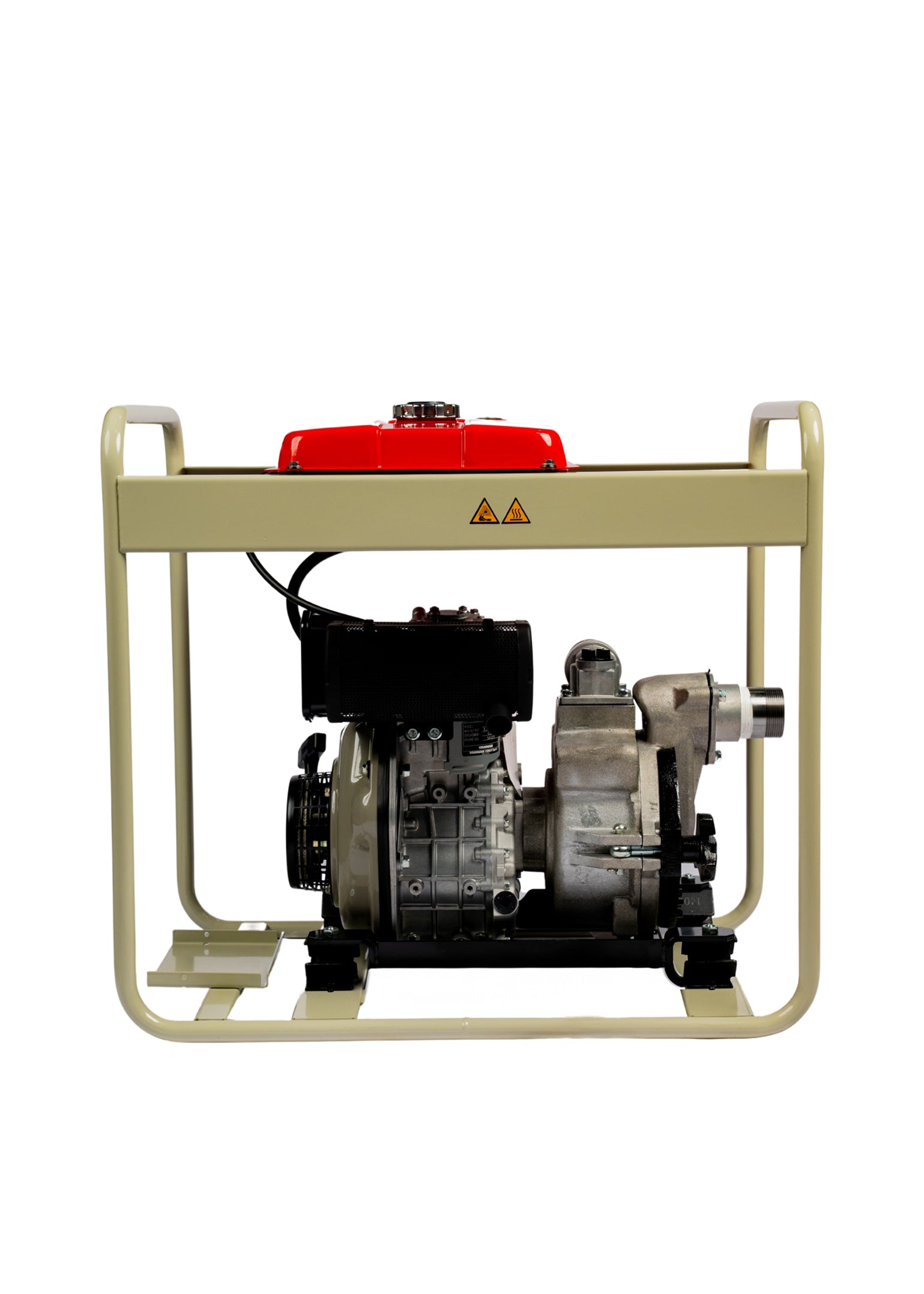

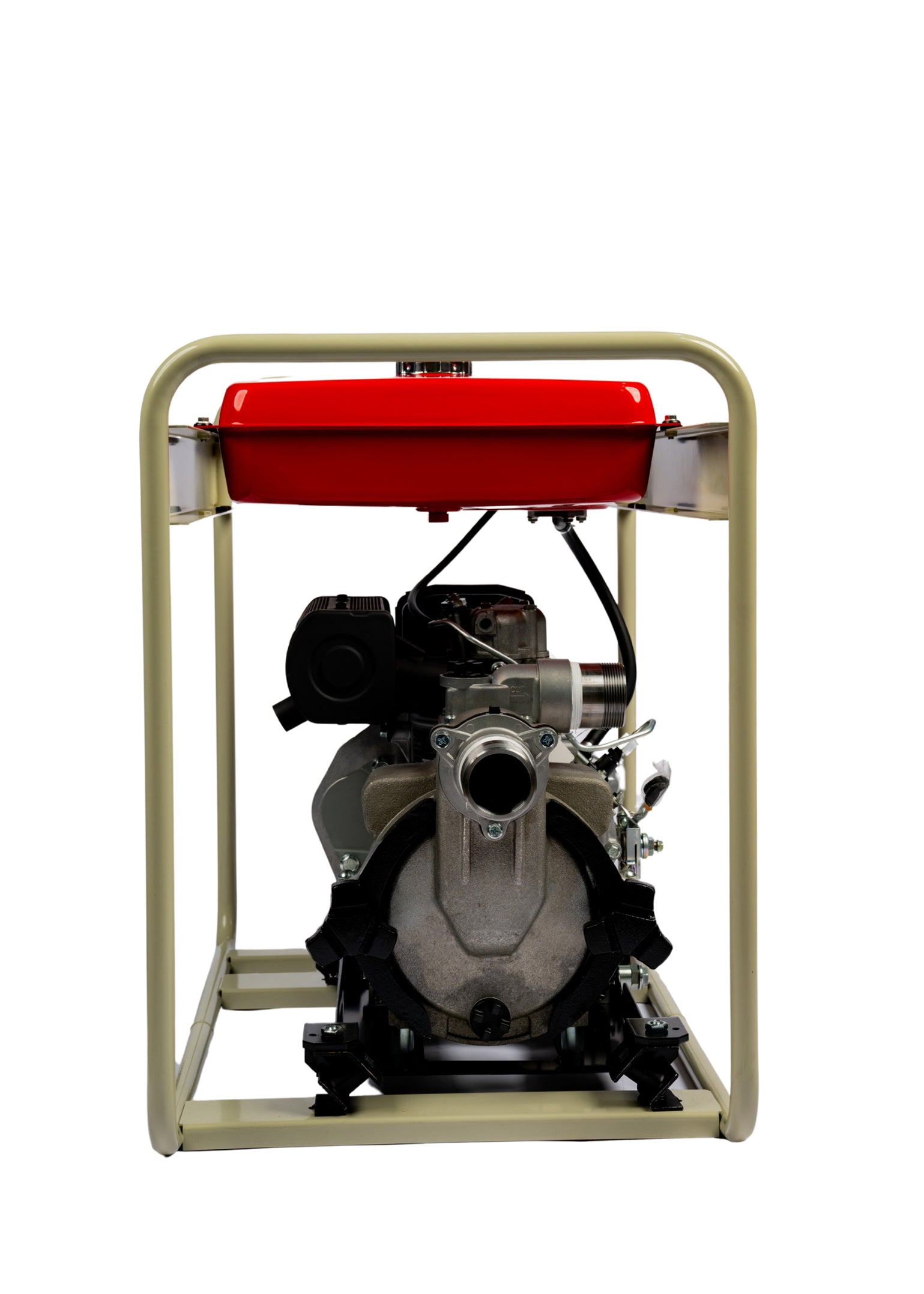

YANMAR YDP20TN-Y1 MS 2"x2" AIRCOLLED THRASH WATER PUMP
YANMAR YDP20TN-Y1 MS 2"x2" AIRCOLLED THRASH WATER PUMP
YANMAR YDP20TN-Y1 MS 2"x2" AIRCOLLED THRASH WATER PUMP
YANMAR YDP20TN-Y1 MS 2"x2" AIRCOLLED THRASH WATER PUMP

YANMAR YDP20TN-Y1 MS 2"x2" AIRCOLLED THRASH WATER PUMP

AED 8,500.00

Shipping calculated at checkout

Quantity:
Product Overview
Highlights
  • Model:YDP20TN-Y1 (2″ × 2″)
  • Pump Type:Portable trash water pump (self-priming)
  • Suction & Discharge Diameter:50 mm (2″)
  • Maximum Flow (Capacity):550 L/min
  • Suction Lift:Up to 7 m
  • Maximum Total Head:~24.0 m
  • Engine Model:YANMAR L48N6 (or similar L-series)
  • Engine Type:4-stroke, air-cooled diesel
  • Displacement:219 cc
  • Maximum Engine Power:3.5 kW @ 3600 rpm
  • Continuous Engine Power:3.1 kW @ 3600 rpm
  • Fuel Tank Capacity:13 liters
  • Starting System:Recoil (manual)
  • Impeller / Material:Components made of cast iron / cast steel for durability
Product Description

The YANMAR YDP20TN-Y1 is a rugged, portable trash (waste/debris-laden) water pump designed for demanding dewatering applications. Powered by a reliable, air-cooled YANMAR L-series diesel engine, this pump offers efficient performance, durability, and a long service life in challenging environments such as construction sites, mines, agricultural fields, or flood-prone areas.

Its compact footprint and self-priming design make it easy to transport, set up, and operate. Thanks to its 2″ suction and discharge port, it’s ideal for moderate flow trash-water pumping where debris may be present. The YDP20TN is built to withstand harsh conditions while delivering strong, consistent water throughput.

Key Features

  • Durable Diesel Engine
    Powered by a YANMAR L-series 4-stroke air-cooled diesel engine, known for its fuel efficiency, long life, and reliability.

  • Trash-Water Capability
    Designed specifically for trash or semi-trash water: can handle water containing debris, making it ideal for construction, dewatering, or emergency flood use.

  • Self-Priming Pump
    Enables the pump to start without manual priming; simplifies setup and reduces operational hassle.

  • High Flow Rate
    Capable of pumping up to 550 liters per minute.

  • Strong Suction Performance
    Offers up to 7 m of suction lift, allowing it to draw water efficiently from lower water levels.

  • Rugged Construction
    Use of cast iron and cast steel parts for pump casing and impeller ensures durability in harsh environments.

  • Portability
    Compact frame and relatively low weight (~57 kg) make it easy to transport; optional wheel kit available for easier movement across job sites.

  • Large Fuel Tank
    13-liter fuel tank gives longer continuous run times between refuels.

  • Low Vibration and Noise
    The 4-stroke diesel engine design helps minimize vibration and noise, improving user comfort during operation.

⚠️ Use Cases / Applications

  • Construction site dewatering (foundations, pits)

  • Flood control and emergency pumping

  • Agriculture and irrigation (especially where water may contain sediment or debris)

  • Drainage for mines or quarries

  • Temporary water transfer in remote job sites
