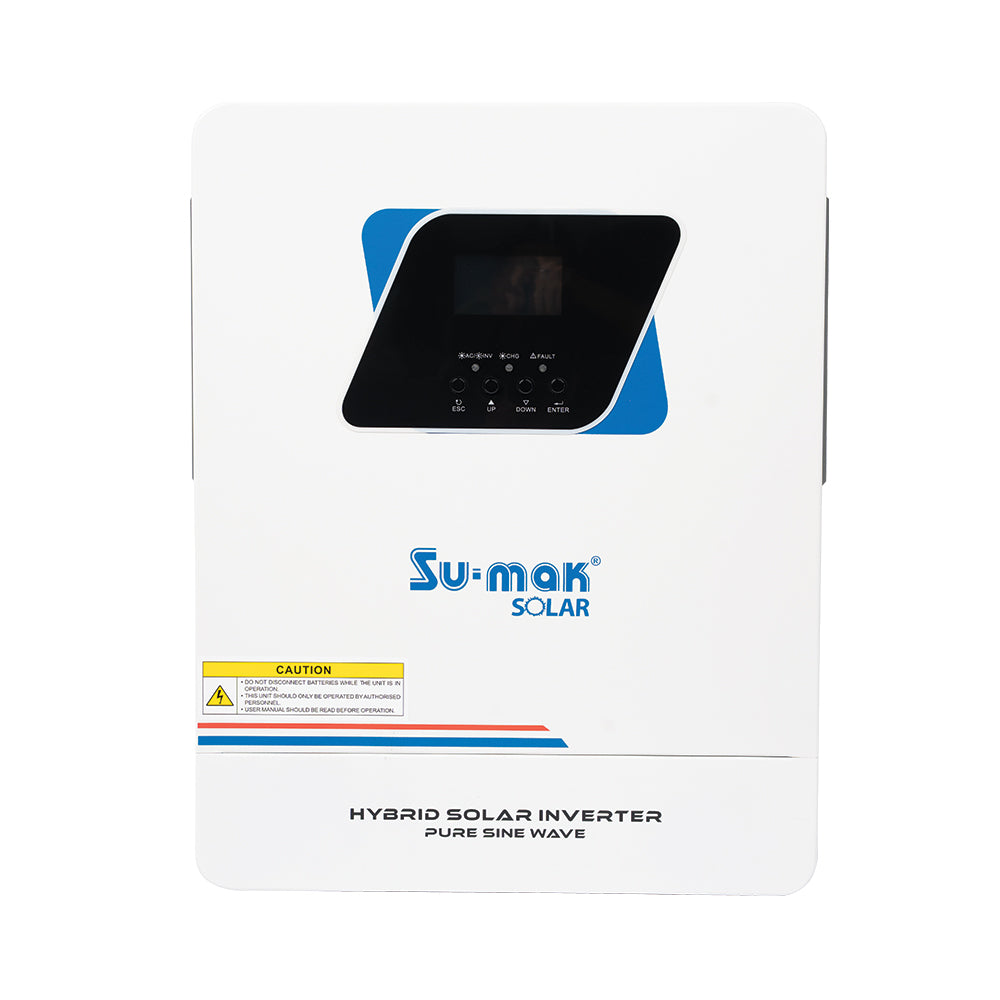

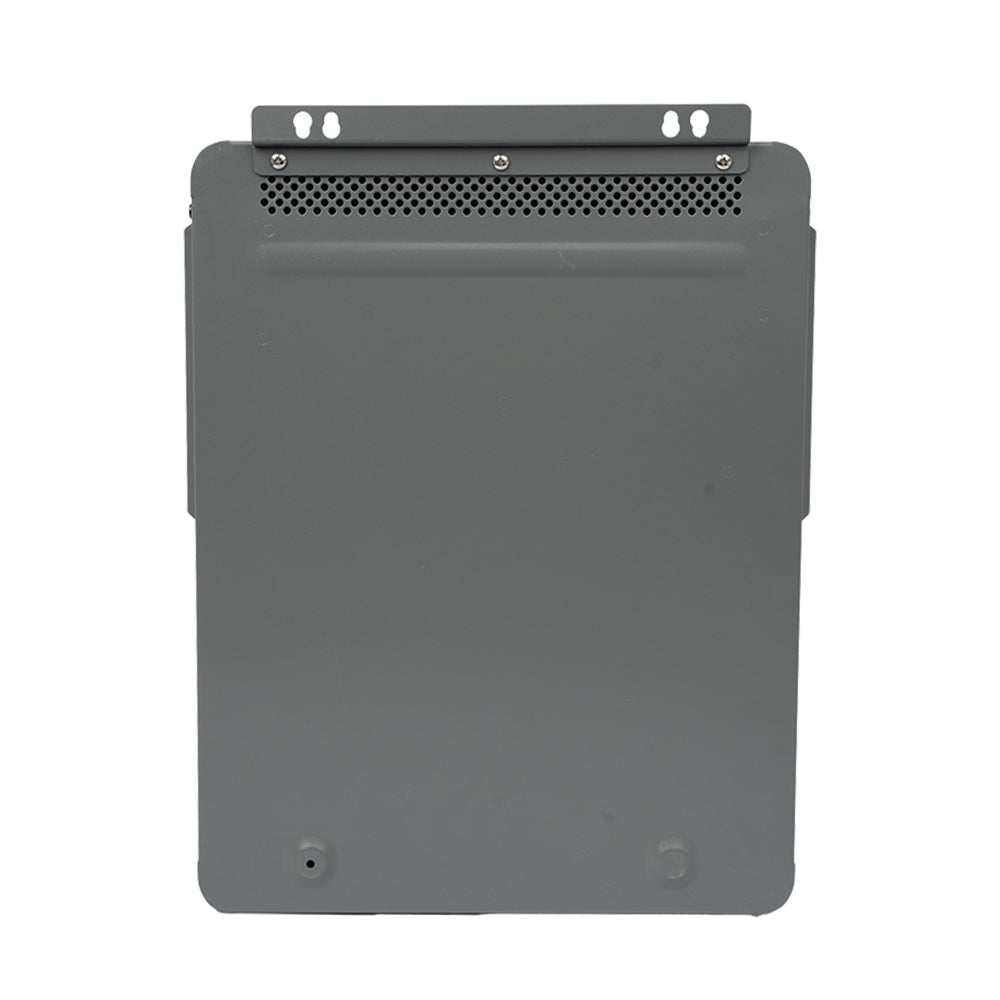

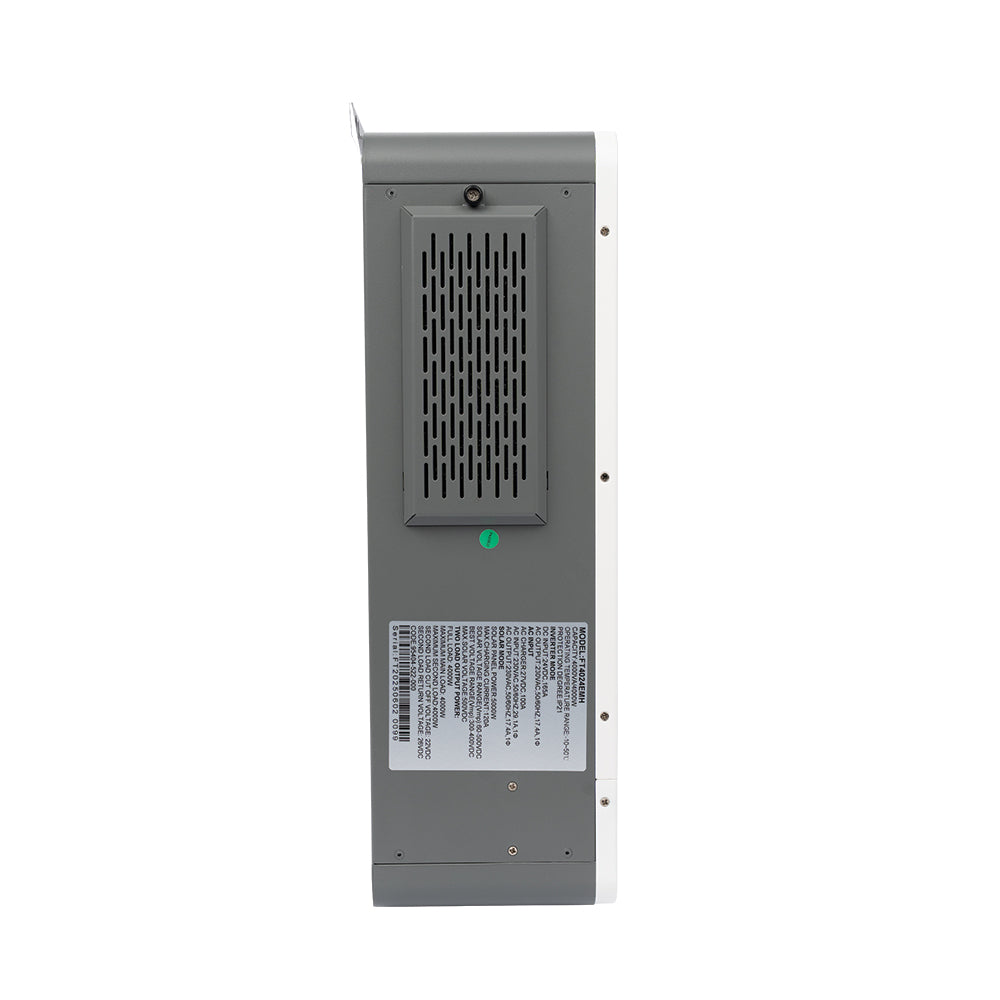

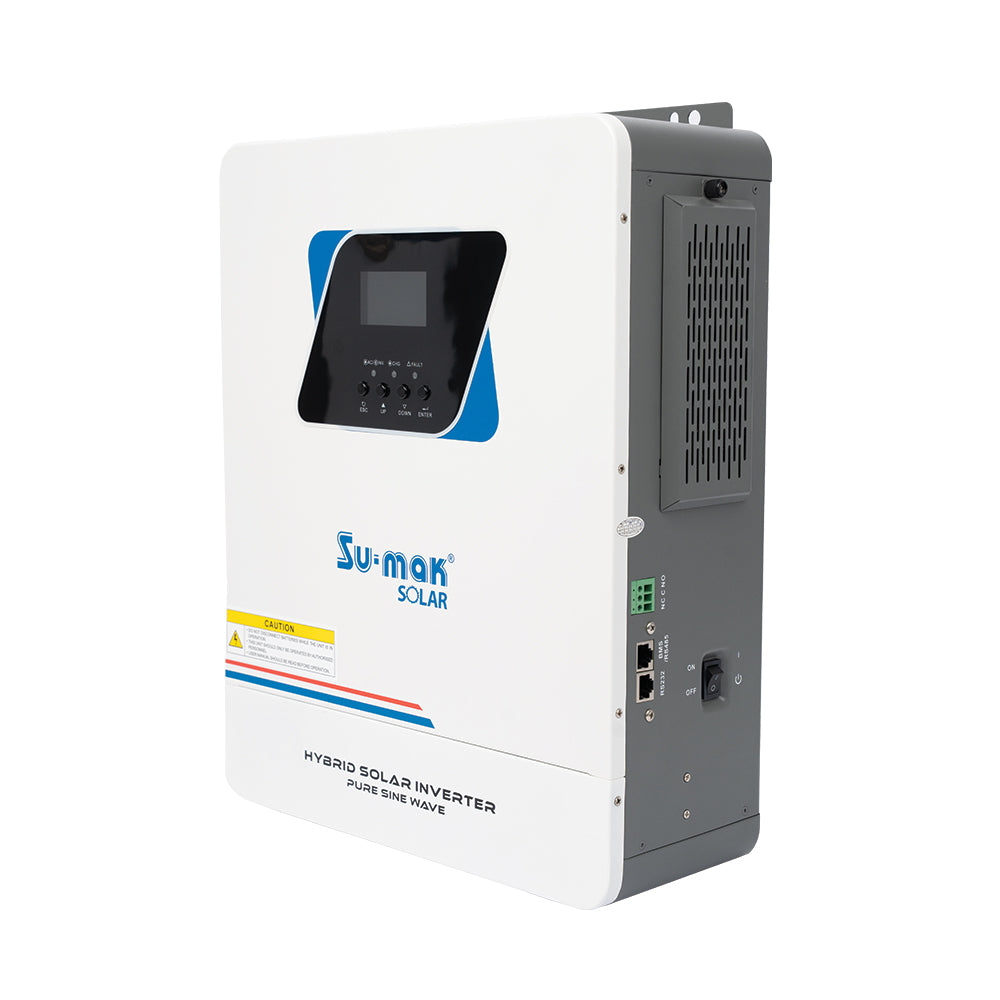

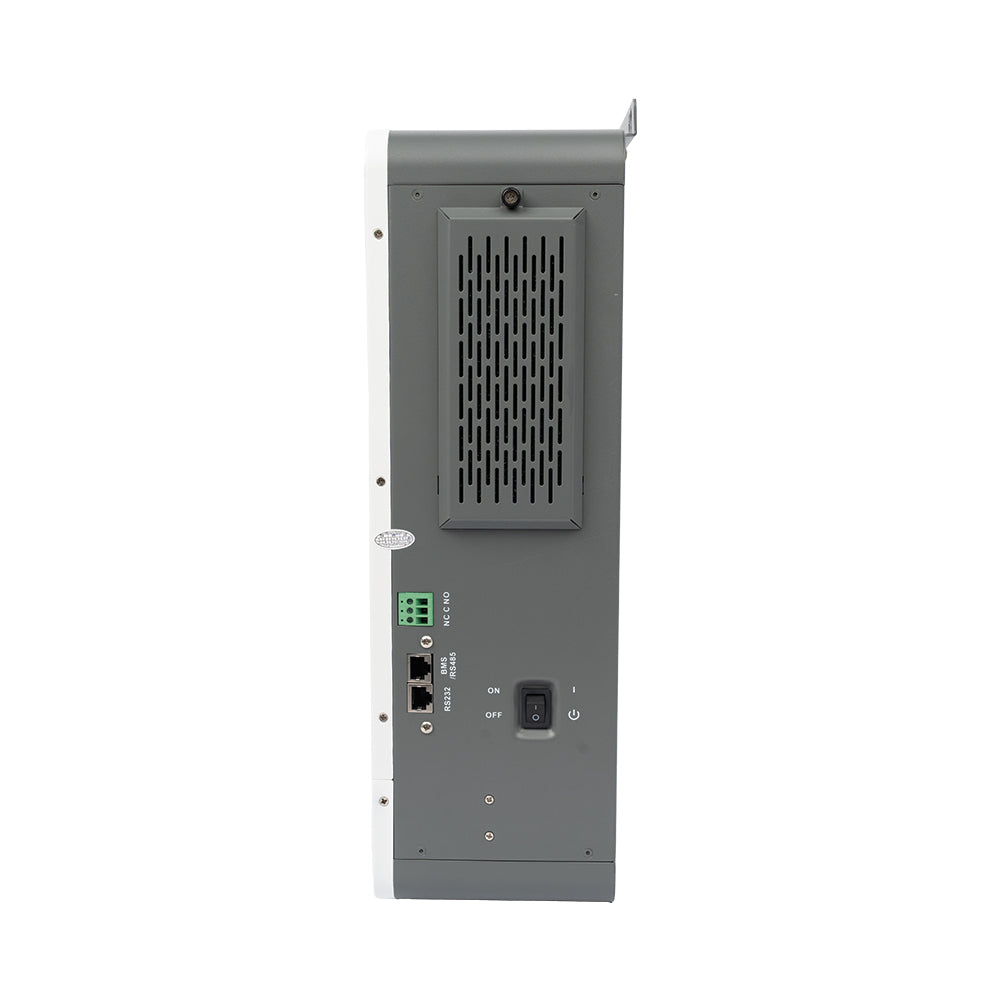

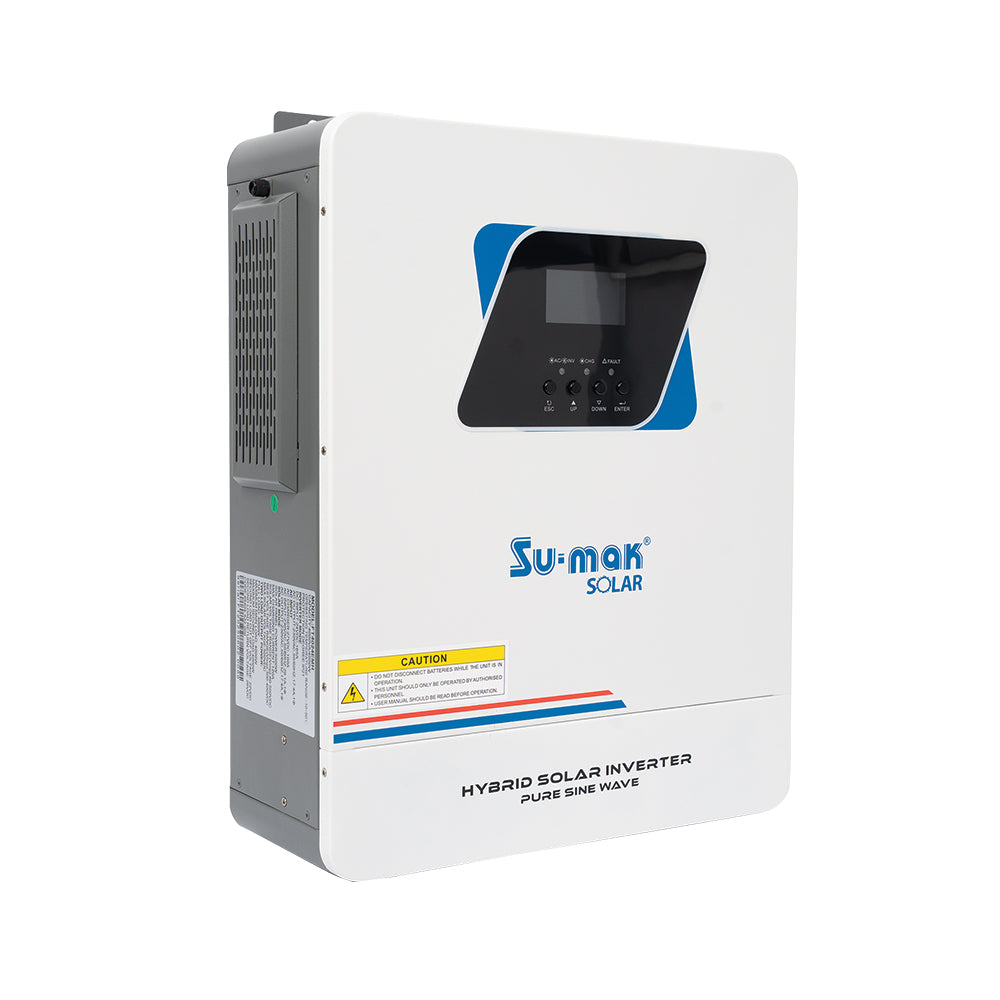

SUMAK W/M HYBIRD INVERTER FT4024EMH 4000VA/24V 4KW
Choose options
- Model:FT4024EMH – 4000VA / 24V | 4kW Hybrid Inverter
- Rated Power:4000VA / 4000W
- Output Waveform:Pure Sine Wave
- DC Input Voltage:24V DC
- AC Output Voltage:230V ±5%
- Output Frequency:50/60Hz (Auto Sensing)
- Efficiency (Peak):≥ 93%
- Maximum PV Input Power:4000W
- PV Input Voltage Range:60V – 145V DC
- Maximum PV Open Circuit Voltage:145V
- MPPT Charge Controller:100A MPPT
- MPPT Efficiency:≥ 98%
- Battery System Voltage:24V
- Maximum Charging Current:120A (Solar + AC)
- Charging Modes:Solar / Grid / Hybrid
- Battery Types Supported:Lead-Acid (Wet, AGM, Gel)
- Battery Types Supported:Lithium Battery (User-defined settings)
- AC Input Voltage:230V AC
- Input Voltage Range:90V – 280V
- AC Charging Current:Up to 60A (adjustable)
- Operating Temperature:0°C to 50°C
- Humidity:5% – 95% (Non-condensing)
- Cooling:Intelligent Fan Cooling
- Mounting:Wall-mount / Vertical
- Display:LCD with LED indicators
- Communication:RS-232 / USB / Optional Wi-Fi
The FT4024EMH 4000VA/24V Hybrid Inverter is a high-performance, multi-functional power solution designed for homes, offices, and small commercial applications. It combines the functions of an inverter, solar charger, and AC charger into a single, intelligent unit, ensuring reliable and efficient power conversion under all conditions.
Engineered for seamless integration with both solar panels and batteries, this model ensures continuous, uninterrupted power with fast switching capability. Its advanced DSP technology delivers pure sine wave output, protecting sensitive electronics while maximizing system efficiency. Ideal for hybrid solar systems, off-grid installations, and backup applications, the FT4024EMH offers stable performance, smart energy management, and durable construction.
Key Features
Pure Sine Wave Output
Ensures safe operation of sensitive electronics like laptops, TVs, and medical equipment.
High-Efficiency MPPT Controller
Extracts maximum solar energy even in low light conditions, improving overall system performance.
Smart Hybrid Function
Automatically prioritizes solar energy, then battery, then grid—reducing electricity costs.
Fast Transfer Time
Instant switching (<20ms) ensures uninterrupted power for computers and appliances.
Multiple Charging Modes
Selectable modes for solar-only, grid-only, or hybrid operation.
LCD Display Panel
Real-time monitoring of battery, PV, AC input/output, and system status.
Wide PV Input Range
Allows flexibility in solar array configuration and higher panel efficiency.
Comprehensive Protection
Built-in safeguards enhance product safety and increase system lifespan.
Lithium Battery Ready
Supports modern LiFePO4 and other lithium chemistries with programmable parameters.
