SUMAK W/M HYBIRD INVERTER FT2012EMH 2000VA/12V 1.6KW
Choose options
Product Overview
Highlights
- Input Voltage (AC):220/230/240V AC
- Voltage Range:90–280V AC (Normal), 170–280V AC (UPS Mode)
- Frequency Range:50/60 Hz (Auto-detection)
- Output Voltage:220/230/240V AC ±5%
- Output Frequency\t:50/60 Hz ±0.1%
- Battery Inverter Power:1600W
- PV Inverter Power:1600W
- Peak Power:3200VA
- Switching Time:10ms (Computer), 20ms (Home Appliances)
- Max PV Input Power:2000W
- MPPT Voltage Range:40–500V DC
- Optimal PV Voltage:300–400V DC
- Max PV Charging Current:100A
- Max Mains Charging Current:60A
- Battery Charging Voltage:Constant: 28.2V DC, Float: 27V DC
- Display:LCD (shows mode, load, input/output, etc.)

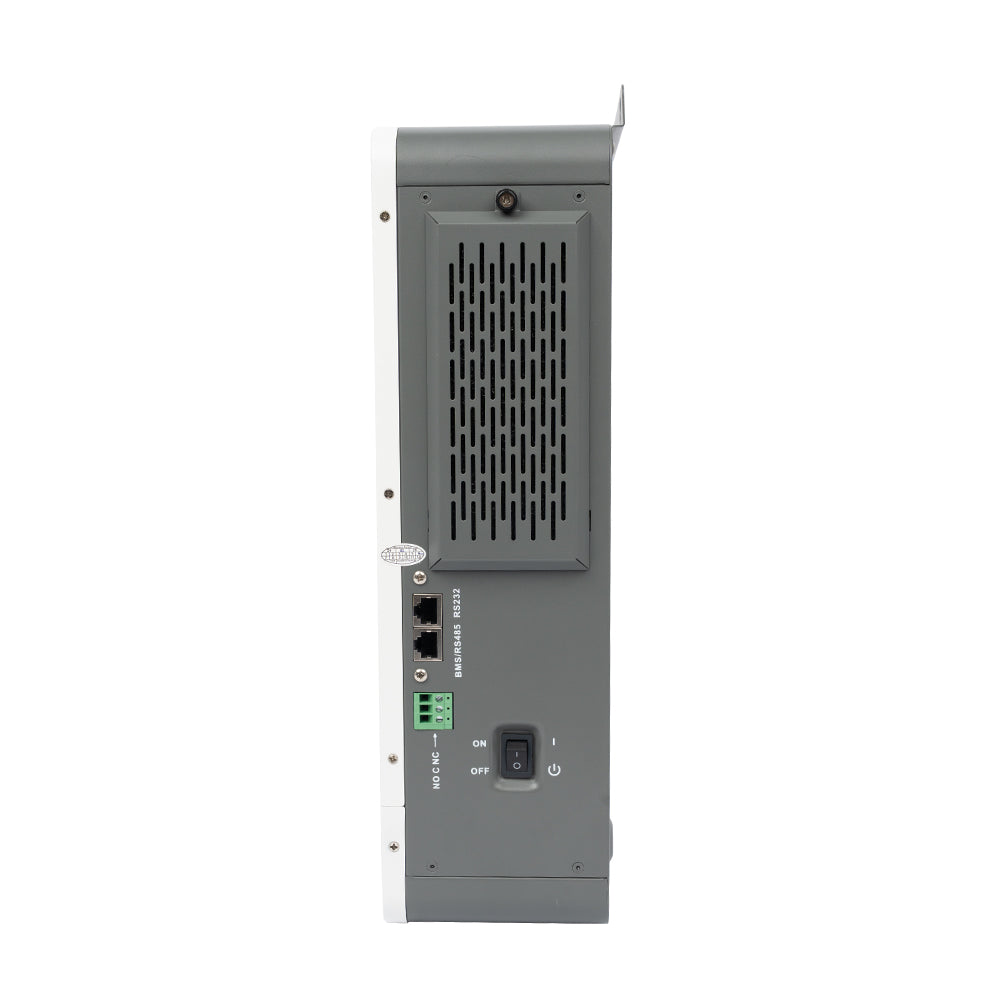

- Communication Ports:RS232, expansion slots for BMS, WiFi, dry contact
- Parallel Function:Not supported in this model
- Operating Temperature:-10°C to +50°C
- Dimensions (mm):403 × 304 × 114
- Certifications:EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
Product Description

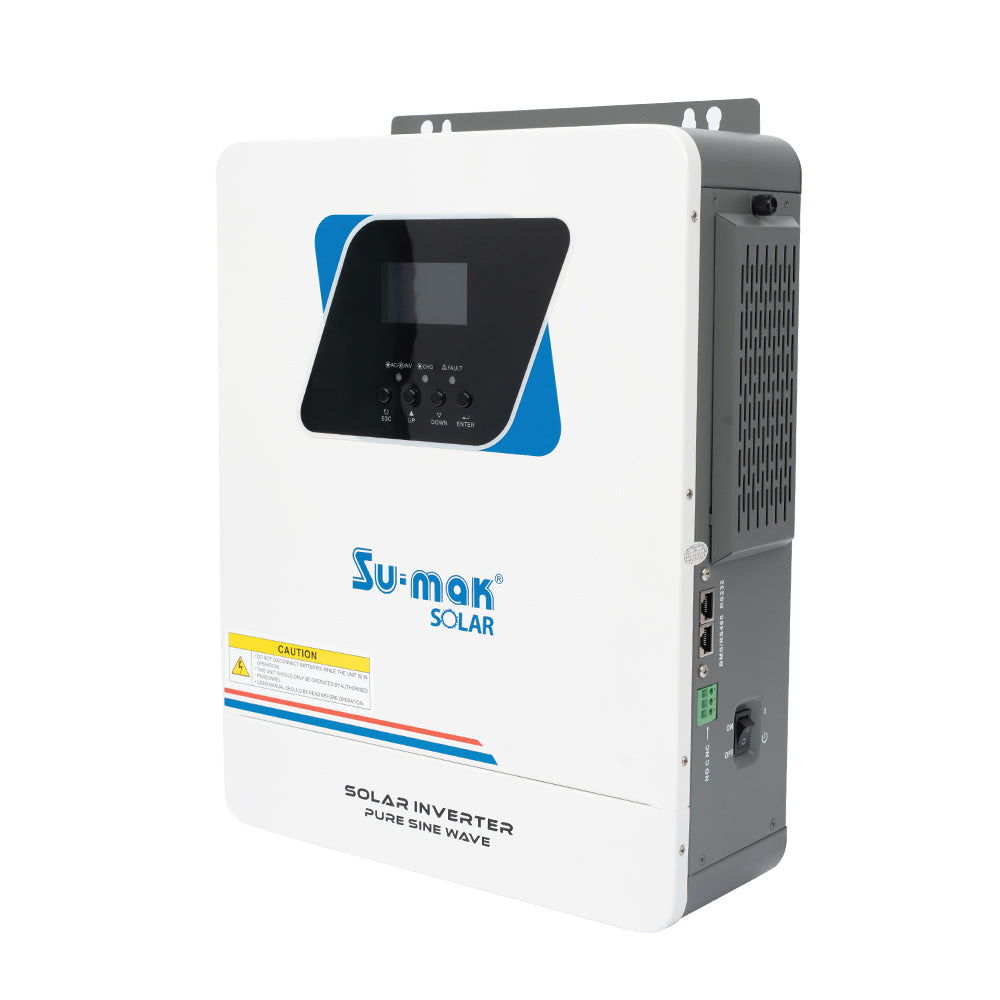

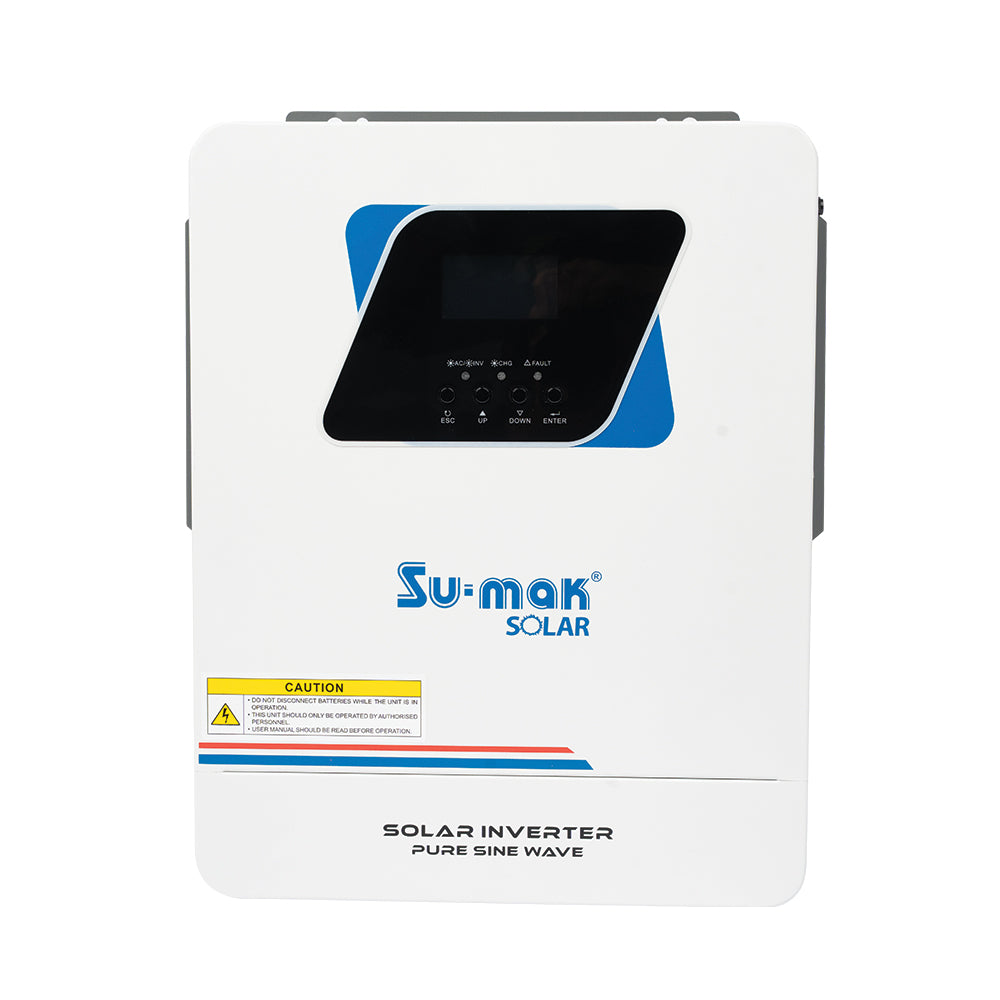

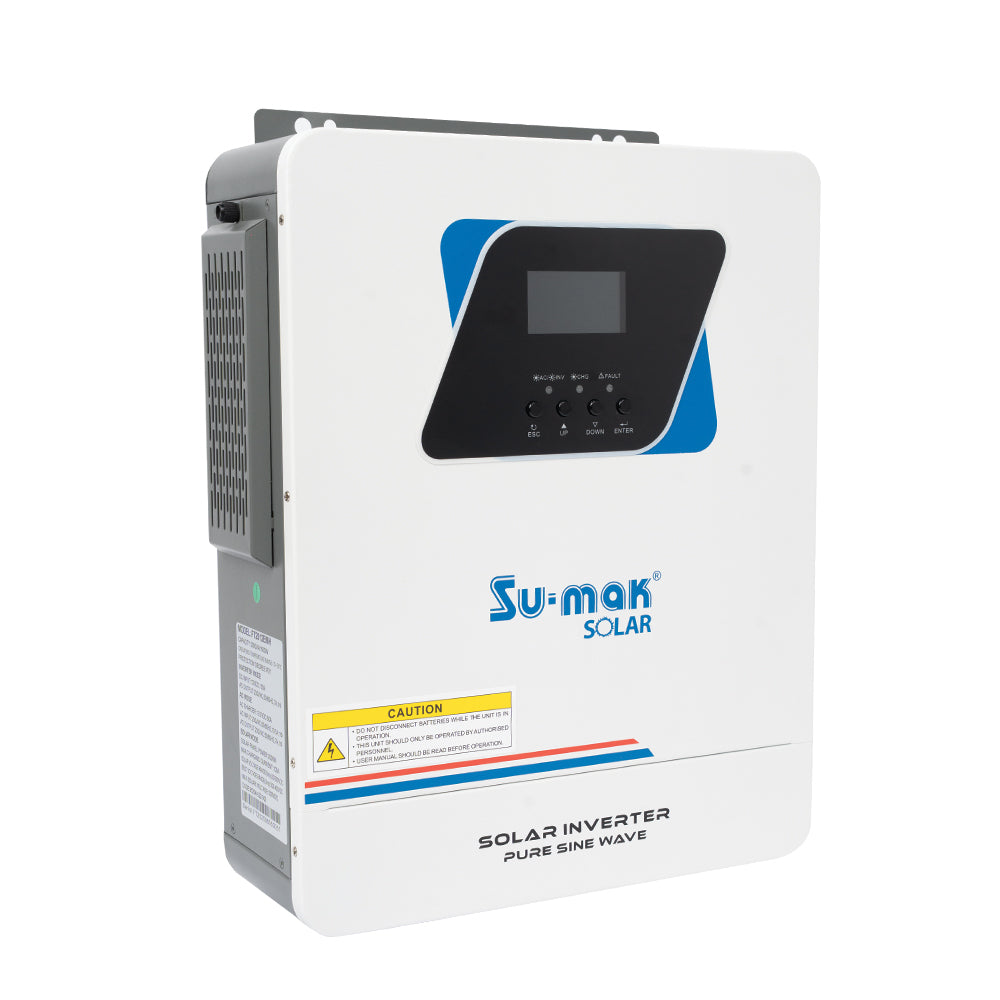

SUMOK Hybrid Solar Inverter Model FT2012EMH
A compact and efficient 2000VA / 1600W, 24V pure sine wave hybrid solar inverter designed for reliable off-grid and hybrid power applications. It seamlessly integrates solar, battery, and grid power to provide continuous and clean electricity.
Key Features:
| Feature | Benefit |
|---|---|
| Pure Sine Wave Output | Safe for sensitive electronics (computers, medical devices, motors). |
| MPPT Solar Charging | Maximizes solar energy harvest with wide PV voltage range (40–500V). |
| Hybrid Operation | Automatically switches between solar, battery, and grid power. |
| Lithium Battery Ready | Supports communication with lithium BMS via expansion slot. |
| Expandable Connectivity | Optional WiFi, generator start dry contact, and parallel kits. |
| User-Friendly LCD | Real-time display of system status, load, and input/output power. |
| High Conversion Efficiency | Up to 98% efficiency for reduced energy loss. |
| Fast Switching Time | 10ms for computers, 20ms for appliances – minimal interruption. |
| Wide Input Voltage Range | Operates from 90–280V AC, suitable for unstable grids. |
| Multiple Protections | Short-circuit, overload, over-temperature, and reverse polarity protection. |
| Certified Safety | Complies with international safety standards (EN-IEC, IEC). |
Perfect For:
-
Homes, cabins, and small offices needing backup power
-
Off-grid solar systems with battery storage
-
Hybrid setups to reduce grid dependency
-
Remote locations with unreliable electricity supply
