Su-mak SOLAR LiFePO4 BATTERY 25.6V 100AH (2.56KW)
Su-mak SOLAR LiFePO4 BATTERY 25.6V 100AH (2.56KW)
Su-mak SOLAR LiFePO4 BATTERY 25.6V 100AH (2.56KW)
Su-mak SOLAR LiFePO4 BATTERY 25.6V 100AH (2.56KW)

Su-mak SOLAR LiFePO4 BATTERY 25.6V 100AH (2.56KW)

Brand: Su-mak Solar

 1,830.00
Returns

10 days Return

Free Delivery

Free Delivery

Warranty

Secure Transaction

Top Brand

Top Brand

Amazon Delivered

NBS
Delivered

Sold By Nazeer Basha Syed Mech. & Eng. Equip. Trading Co. LLC

Quantity:

Request a Quote

Logos of MasterCard, Visa, PayPal, and American Express
Product LiFePO4 Battery
Power Capacity 100AH 25.6V
Product Weight 22.00kg
Number of pieces 1BOX
Product Overview
Highlights
  • Battery Chemistry:LiFePO4
  • Nominal Voltage:25.6 V
  • Nominal Capacity:100 Ah
  • Energy Density:2560 Wh
  • Voltage Window:21.6 - 29.2 V
  • Terminal Type / Torque:M8 / 12.4 Nm
  • Case Material:ABS
  • Recommended Charge Voltage:28.0 V
  • Maximum Charge Voltage:29.6 V
  • Recommended Charge Current:20 A
  • Recommended Discharge Voltage:22.4 V
  • Maximum Discharge Voltage:21.6 V
  • Max Continuous Discharge Current:100 A
  • Peak Discharge Current (for 3 sec):150 A
  • Cycle Life (0.2C, 25°C, 80% DOD):6000 Cycles
  • Ah Efficiency (Round-trip):> 98%
  • Self-Discharge per Month:< 3%
  • Discharge Temperature:-20°C to 55°C
  • Charge Temperature:0°C to 55°C
  • Storage Temperature:-20°C to 45°C
  • Primary Charge/Discharge OCP:105A (20s delay) / 110A (30s delay)
  • Secondary Charge/Discharge OCP:110A (2-3s delay) / 150A (2-3s delay)
  • Over-Voltage Protection (per cell):14.6 V (1-2s delay)
  • Under-Voltage Protection (per cell):10.0 V (1-2s delay)
  • Temperature Protection (PCB):85°C
Product Description

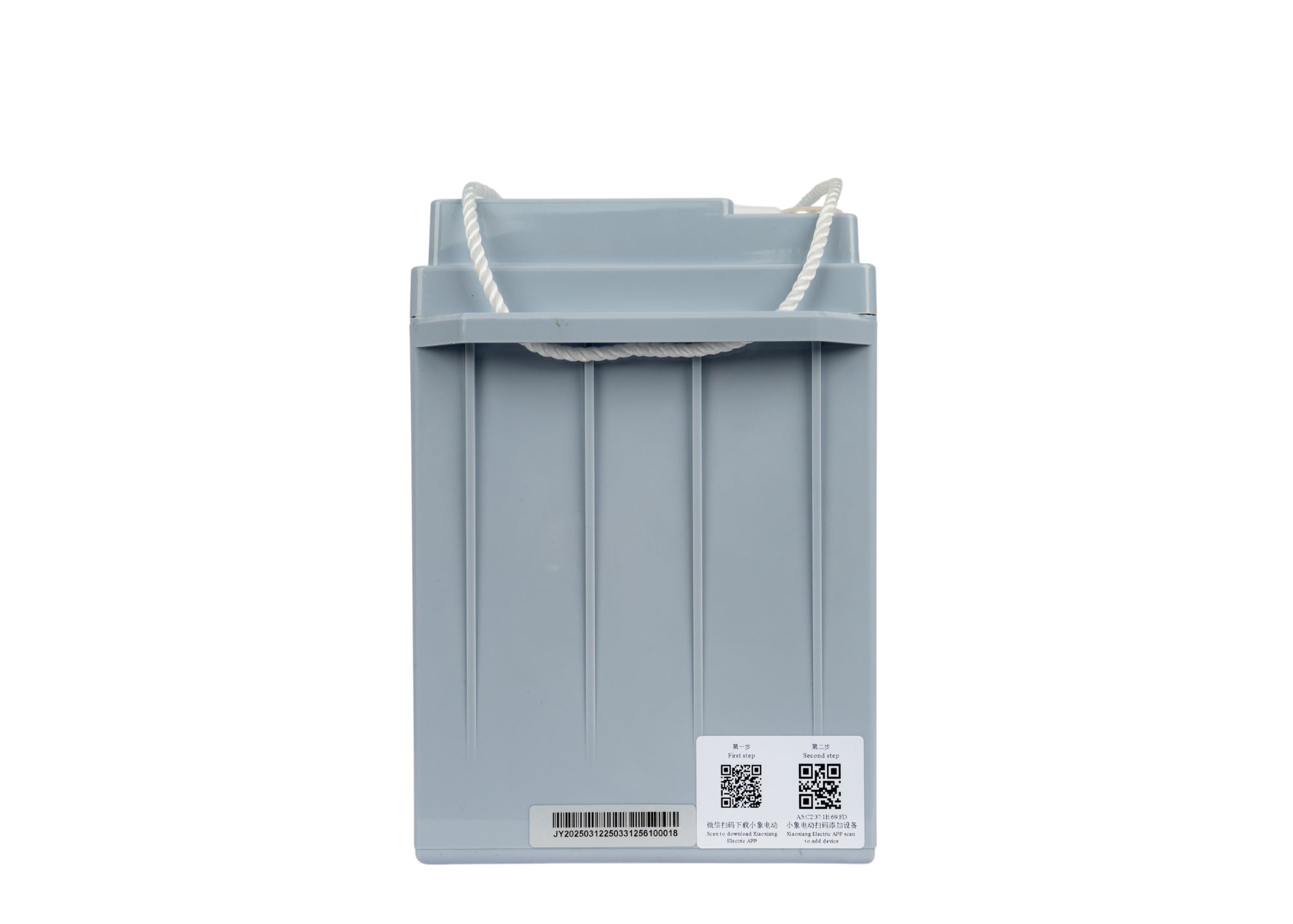

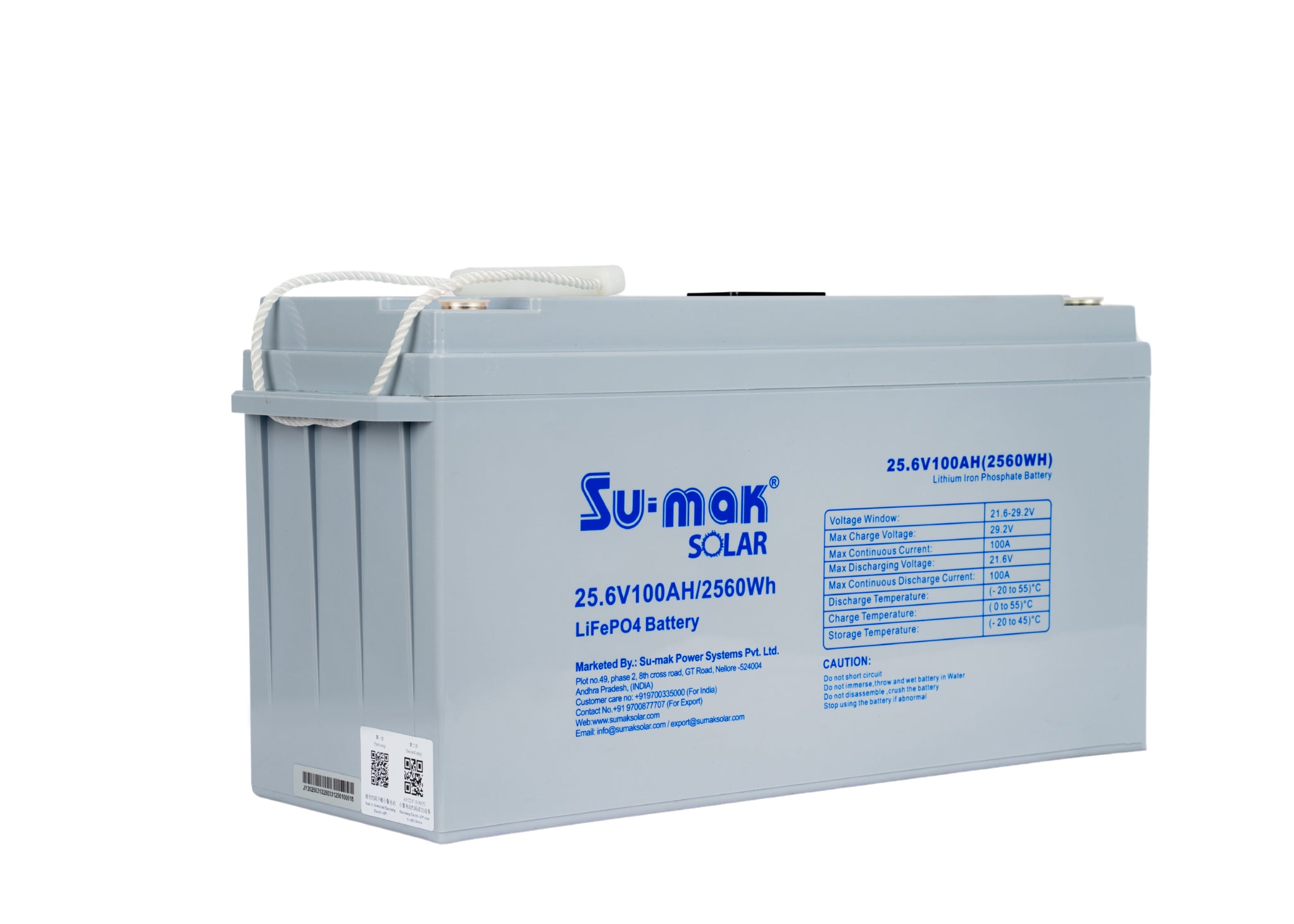

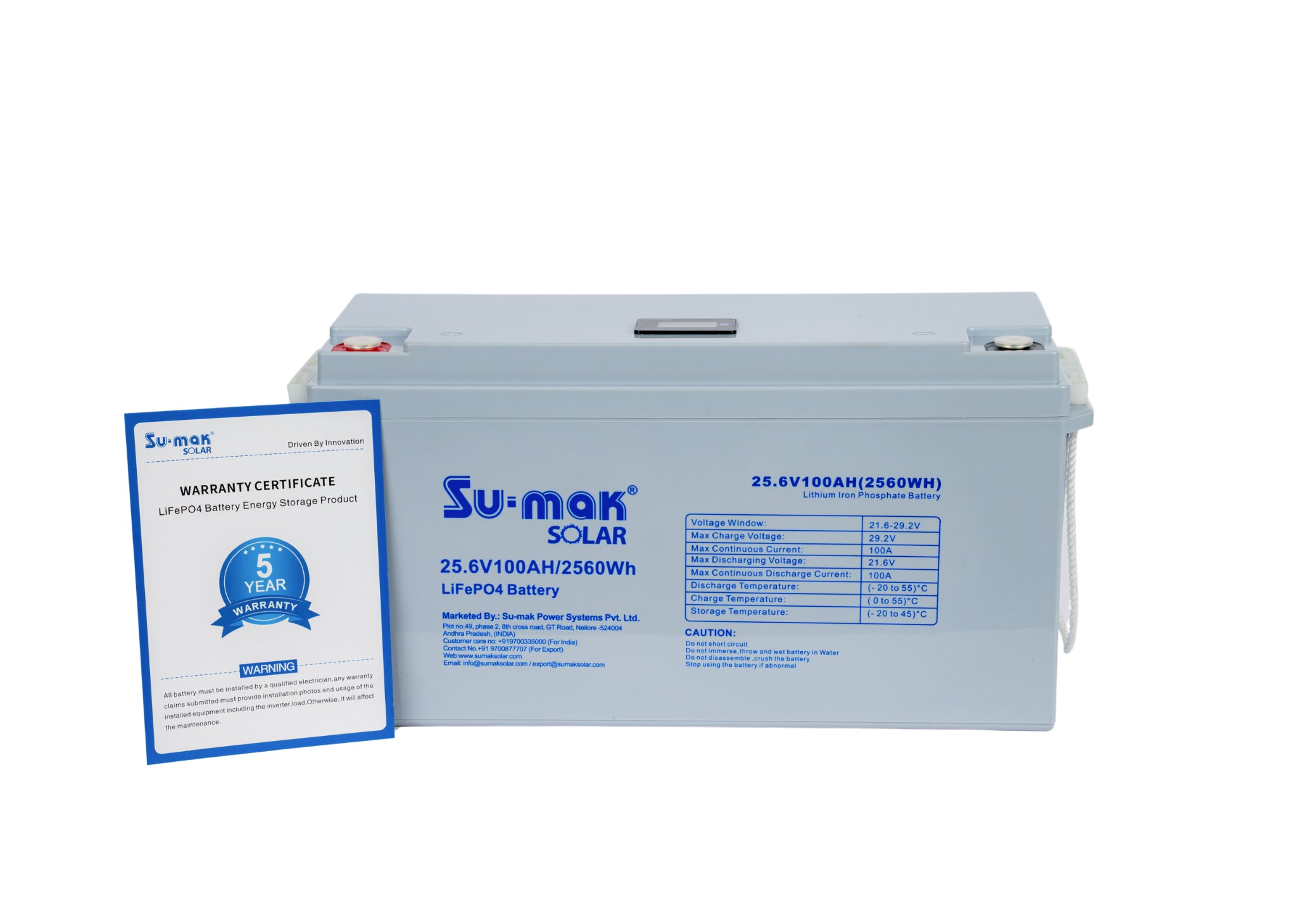

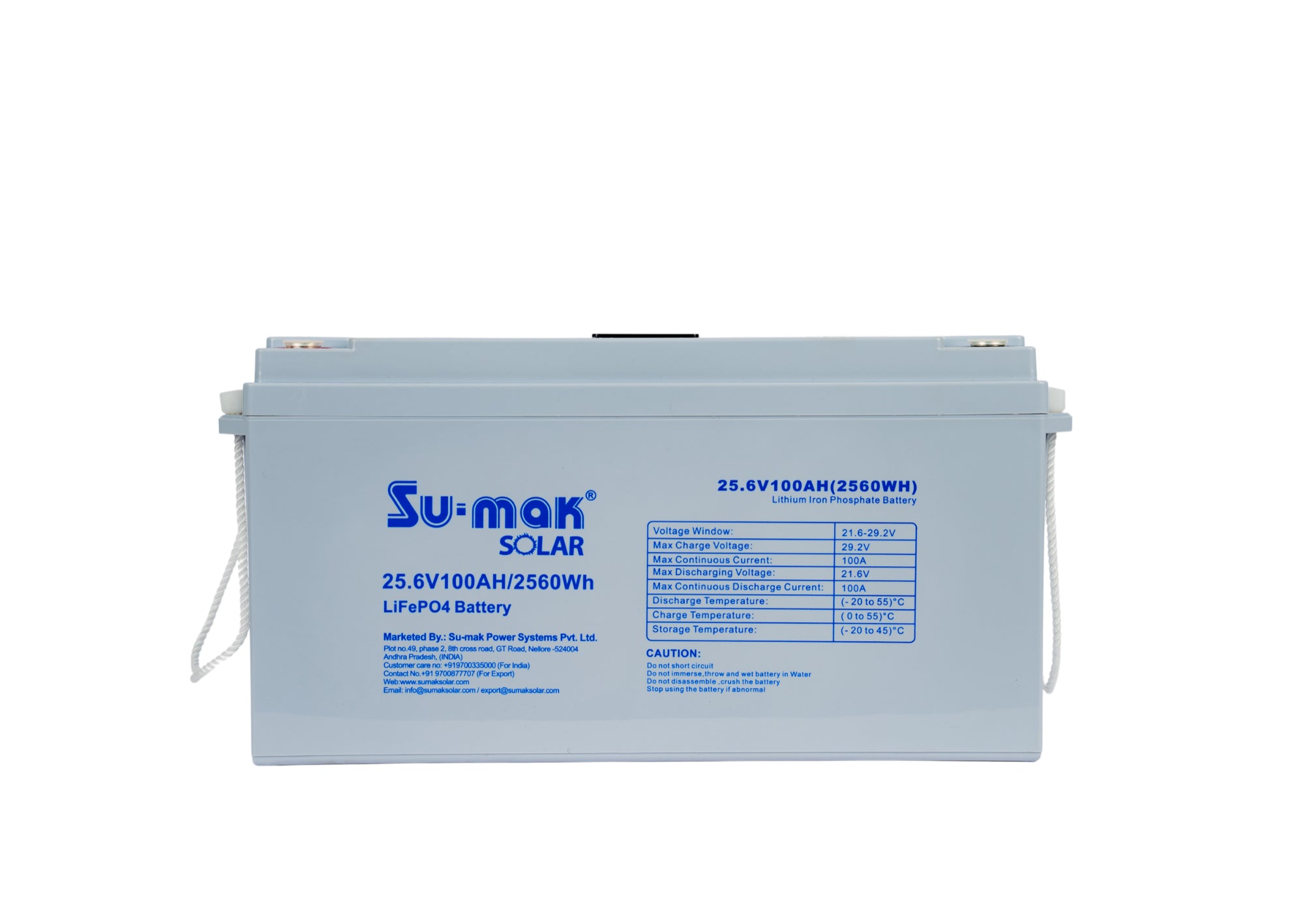

The Sumak SM-LAR24100 is a high-performance lithium iron phosphate (LiFePO4) battery designed for a wide range of demanding applications. With a nominal voltage of 25.6V and a substantial capacity of 100Ah (yielding 2560Wh of energy), this battery is built for reliability, long cycle life, and maintenance-free operation. It utilizes advanced cell technology and includes a built-in Battery Management System (BMS) for enhanced safety and performance. Its robust construction and versatile design make it suitable for commercial, industrial, residential, and mobile use.

Key Features

  • Long Cycle Life: Offers up to 6000 cycles at 80% Depth of Discharge (DOD), ensuring long-term reliability and value.

  • High Efficiency: Boasts a round-trip energy efficiency of over 98%, minimizing energy loss during charge and discharge cycles.

  • Maintenance-Free: Fully sealed and maintenance-free design for hassle-free operation.

  • Built-in BMS: Includes a comprehensive Battery Management System for protection against over-current, over-voltage, over-discharge, and high temperatures.

  • Wide Operating Temperature: Can be discharged in temperatures as low as -20°C and charged from 0°C to 55°C.

  • High Power Capability: Supports high continuous charge and discharge currents of up to 100A, with a peak discharge current of 150A for 3 seconds.

  • Modular Design: Capable of being connected in series or parallel configurations (up to 4 units), allowing for system expansion.

  • Optional Features: Offers optional extras such as a heating function for cold environments, an LCD screen, and Bluetooth connectivity for monitoring via an app.

Applications

This battery is ideal for a diverse set of applications, including:

  • Renewable Energy Storage: Solar and wind power systems.

  • Electric Mobility: Golf carts, floor machines, and forklifts.

  • Recreational Vehicles (RV) & Marine.

  • Backup Power: UPS systems and no-idle solutions for trucks.

  • Industrial Equipment: Aerial lifts, robotics, and telecom/broadband infrastructure.

  • Medical & Mobility Equipment.

In summary, the Sumak SM-LAR24100 is a versatile, high-capacity LiFePO4 battery that combines long life, high efficiency, and robust safety features, making it a reliable power solution for both stationary and mobile applications.
