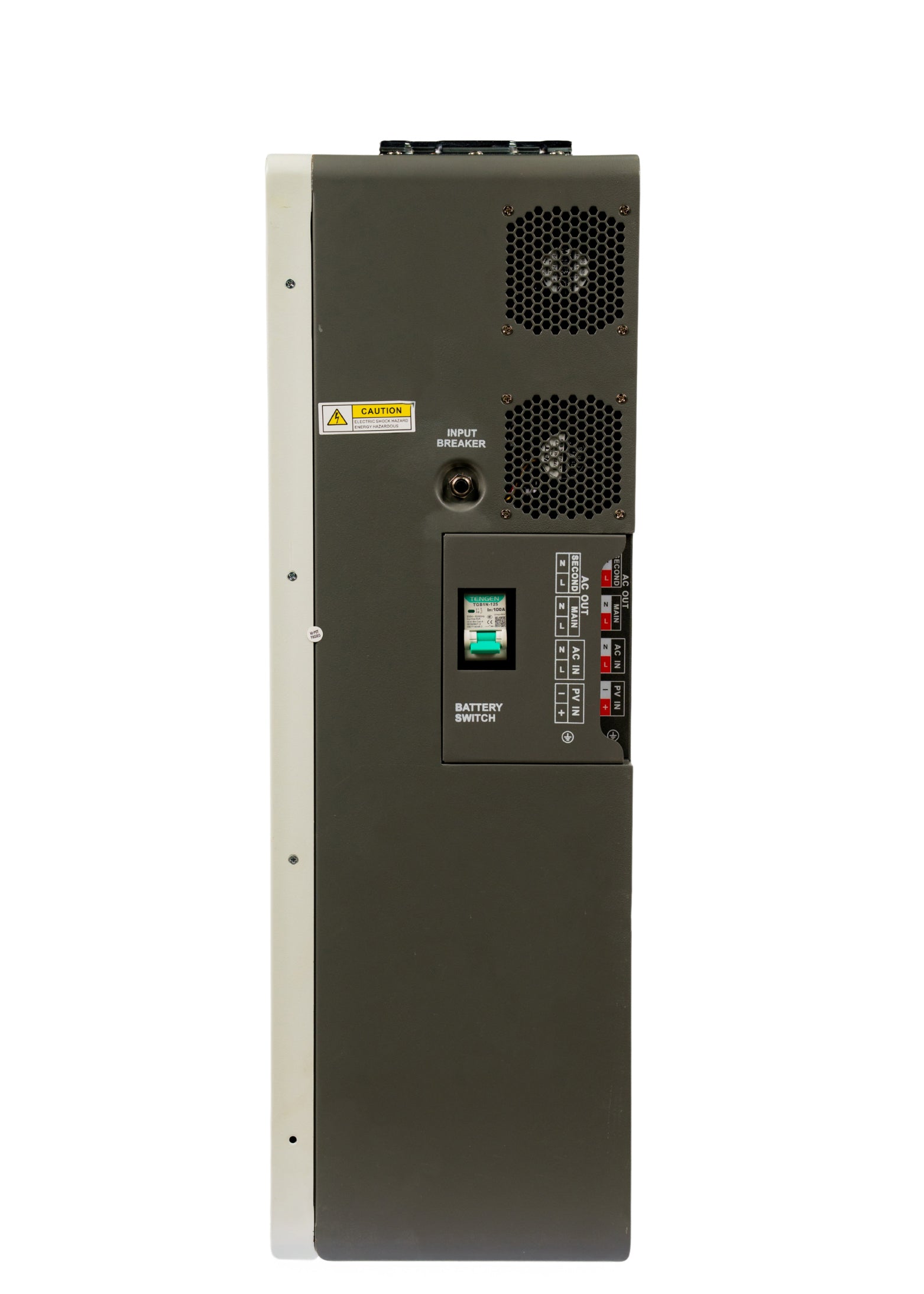

SUMAK ALL-IN-1 VICTOR NM-ESSM-6.2KW PLUS-100AH/48V
SUMAK ALL-IN-1 VICTOR NM-ESSM-6.2KW PLUS-100AH/48V
SUMAK ALL-IN-1 VICTOR NM-ESSM-6.2KW PLUS-100AH/48V

SUMAK ALL-IN-1 VICTOR NM-ESSM-6.2KW PLUS-100AH/48V

AED 5,600.00

Shipping calculated at checkout

Quantity:

Request a Quote

Product Overview
Highlights
  • Model:NM-ESSM-6.2KW PLUS-100AH/48V
  • Rated Output Power:6200W / 6200VA
  • Battery Voltage:48VDC
  • Battery Capacity:100AH
  • Max PV Input Power:6500W
  • MPPT Voltage Range:60–450VDC
  • Max Solar Charging Current:120A
  • Max AC Charging Current:100A
  • AC Output Voltage:220/230/240VAC
  • Output Waveform:Pure Sine Wave
  • Efficiency (DC/AC):Up to 98%
  • Communication Ports:RS232/RS485/WiFi/GPRS
  • Operating Temperature:-20℃ to +65℃
  • Dimensions (D×W×H):701 × 441 × 231 mm
  • Net Weight:58 kg
  • Compliance:CE, UN38.3, MSDS
Product Description

The NM-ESSM-6.2KW PLUS-100AH/48V is a high-performance hybrid energy storage system designed for both on-grid and off-grid applications. It integrates a pure sine wave inverter, MPPT solar charge controller, and a built-in 48V 100AH lithium battery into a compact, dustproof unit. Suitable for residential and commercial use, it supports solar, grid, and battery power modes with seamless switching and remote monitoring via WiFi/GPRS.

Key Features

  • Hybrid Operation: Supports on-grid, off-grid, and solar charging modes with automatic switching.

  • Built-in MPPT Solar Charger: 120A max charging current, high PV input voltage range (60–500VDC).

  • Integrated Lithium Battery: 48V 100AH with advanced BMS for protection and cell balancing.

  • Pure Sine Wave Inverter: Clean and stable output for sensitive electronics.

  • Smart Monitoring: WiFi & GPRS connectivity for remote monitoring via iOS/Android apps.

  • Dual Output: Supports main load (6200W) and secondary load (2087W in battery mode).

  • Dustproof Design: Built-in anti-dust kit for reliable operation in harsh environments.

  • One-Key Factory Reset: Easy restoration to default settings.

  • Parallel Connection Support: Expandable system capability.

  • High Efficiency: Up to 98% conversion efficiency in grid-tied mode.

This system is ideal for users seeking a reliable, all-in-one energy storage solution with strong solar integration and smart management capabilities.
