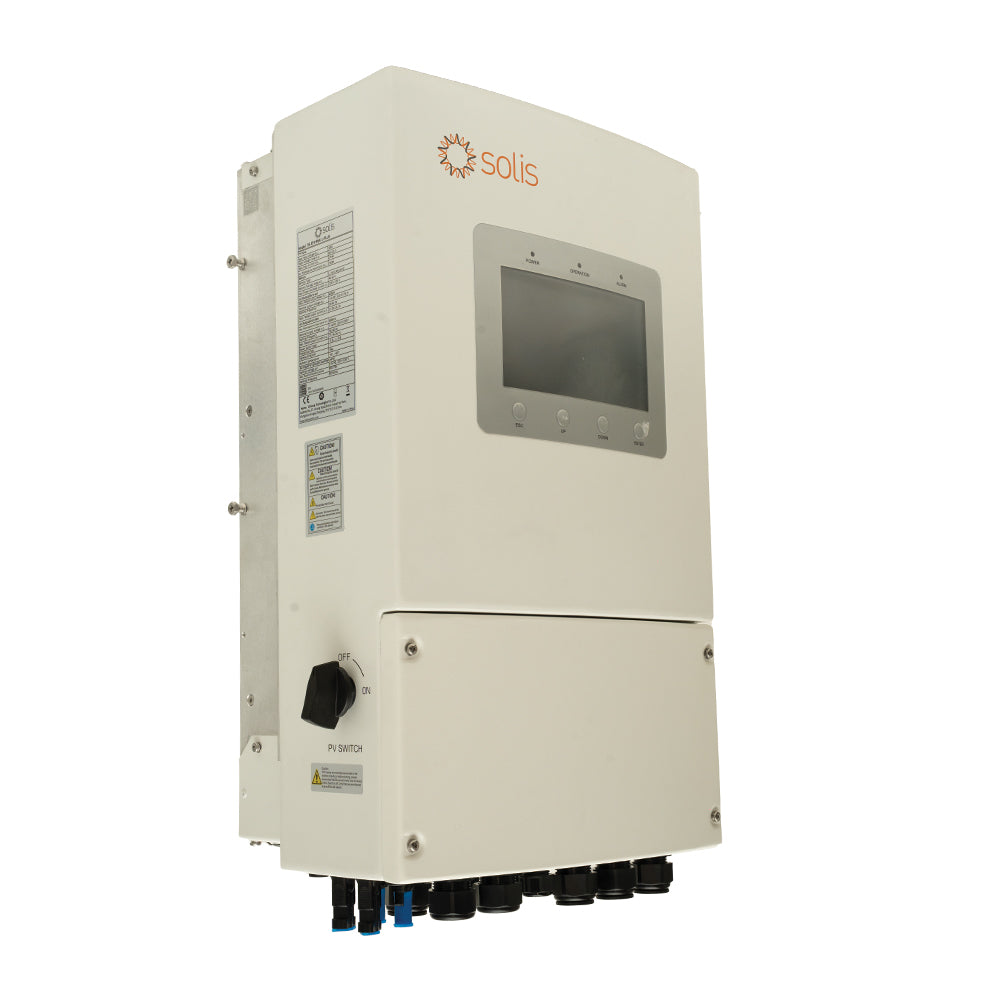

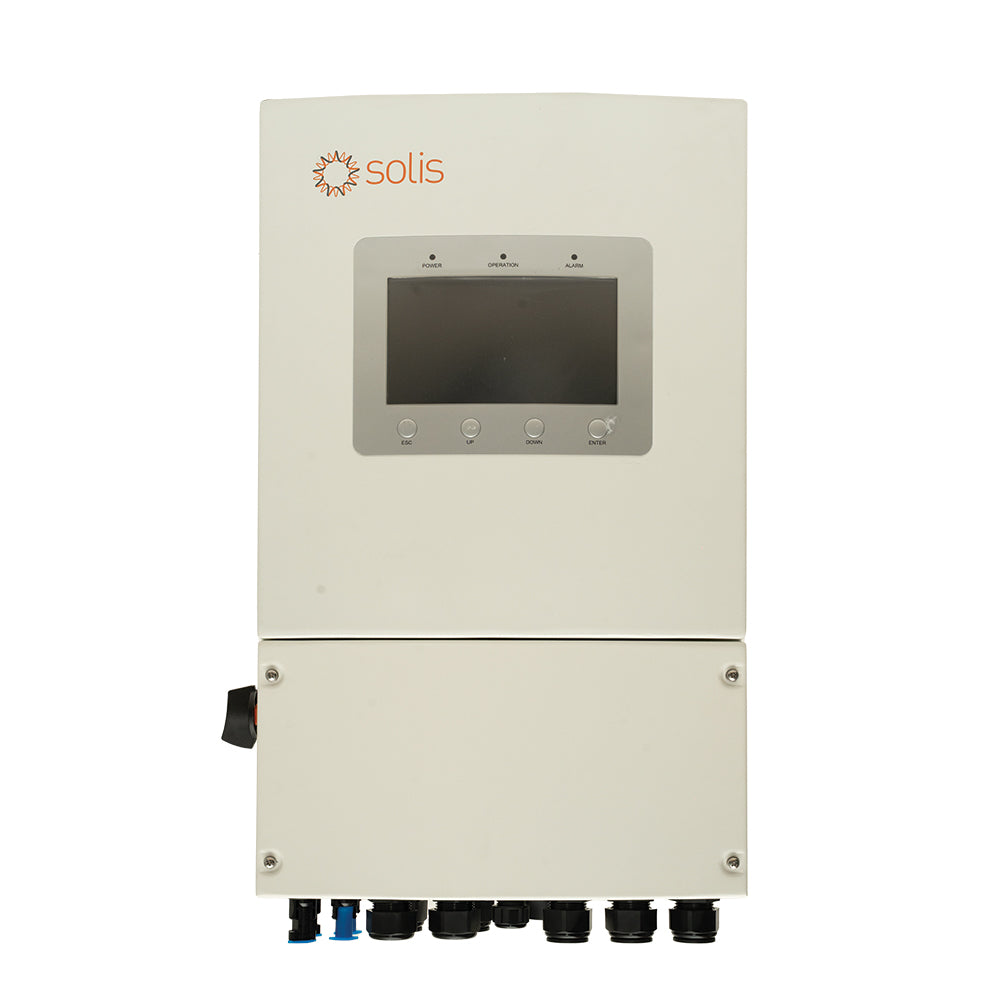

Solis S6-EH1P6K-L-PRO Single Phase Low Voltage Energy Storage Inverter
Solis S6-EH1P6K-L-PRO Single Phase Low Voltage Energy Storage Inverter
Solis S6-EH1P6K-L-PRO Single Phase Low Voltage Energy Storage Inverter
Solis S6-EH1P6K-L-PRO Single Phase Low Voltage Energy Storage Inverter
Solis S6-EH1P6K-L-PRO Single Phase Low Voltage Energy Storage Inverter

Solis S6-EH1P6K-L-PRO Single Phase Low Voltage Energy Storage Inverter

AED 4,000.00

Shipping calculated at checkout

Quantity:
Product Overview
Highlights
  • Model:S6-EH1P6K-L-PRO
  • Recommended Max. PV Power:12 kW
  • Max. Usable PV Power:9.6 kW
  • Max. Input Voltage:600 V
  • MPPT Voltage Range:90 - 520 V
  • Max. Input Current:16 A / 16 A
  • MPPT / Input Strings:2 / 2
  • Battery Type:Li-ion / Lead-acid
  • Battery Voltage Range:40 - 60 V
  • Max. Charge/Discharge Power:6 kW
  • Max. Charge/Discharge Current:135 A
  • Communication:CAN / RS485
  • Output AC (Grid Side)
  • Rated Output Power:6 kW
  • Max. Apparent Power:6.6 kVA
  • Rated Grid Voltage:220 V / 230 V
  • Rated Grid Frequency:50 Hz
  • Max. Output Current:30 A
  • Power Factor\t>:0.99
  • Output AC (Back-up)
  • Rated Output Power:6 kW
  • Max. Apparent Power:2 x rated power for 10 s (12 kW surge)
  • Back-up Switch Time:< 4 ms
  • Max. Output Current:30 A
  • Efficiency
  • Max. Efficiency:> 96.9%
  • EU Efficiency:> 96.5%
  • General Data
  • Operating Temperature:-40 °C to +60 °C
  • Ingress Protection:IP66
  • Cooling:Natural cooling
  • Communication:RS485, CAN, Optional: Wi-Fi, GPRS, LAN
  • Display:LED indicator & Bluetooth + APP
Product Description

The Solis S6-EH1P6K-L-PRO is a high-performance, single-phase hybrid energy storage inverter designed for demanding residential and commercial power scenarios. As part of Solis's PRO series, it offers robust features such as generator connectivity, automatic UPS switching, and exceptional surge power capability. With a maximum 6kW output power, support for flexible parallel configurations (up to 36kW), and compatibility with both lithium and lead-acid batteries, this inverter ensures reliable energy management, backup power, and grid interaction. Its high ingress protection (IP66) and wide operating temperature range make it suitable for diverse installation environments.

Key Features

  • High Surge Power Capability: Delivers 200% surge power (12 kW) for 10 seconds, enabling the startup of demanding inductive loads such as motors, pumps, and air conditioners without interruption.

  • Automatic UPS Switching: Features a ultra-fast <4 ms transfer time to backup power during grid failures, ensuring continuous operation for sensitive electronics and critical loads.

  • Advanced Generator Support: Provides multiple input methods and automatic generator On/Off control, allowing seamless integration for extended backup during prolonged outages or low solar generation.

  • Flexible Parallel Connection: Supports single and three-phase parallel connections with up to 36kW total capacity, enabling scalable systems for larger residential or commercial energy needs.

  • High Battery Charge/Discharge Current: Offers a max charge/discharge current of 135A, supporting high-power battery systems for rapid charging and high-demand discharge scenarios.

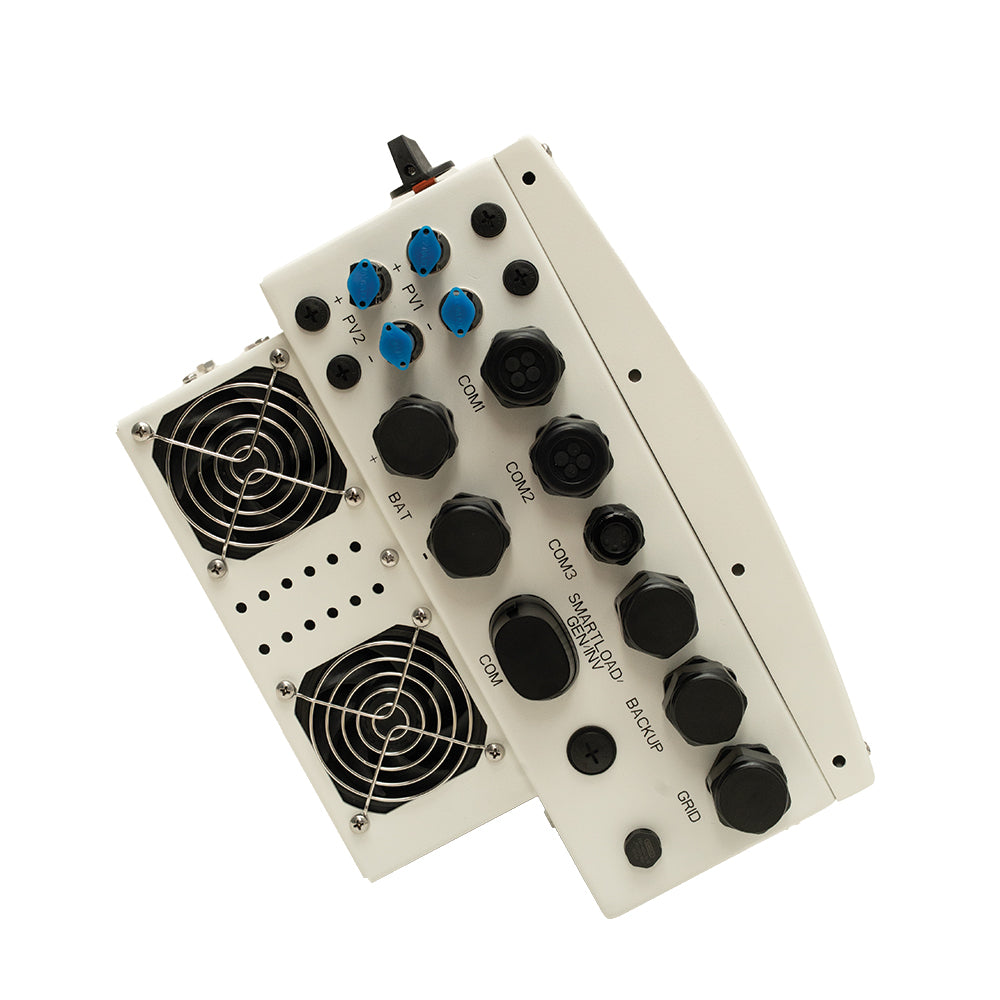

  • Dual MPPT Design: Equipped with two independent MPPTs, allowing connection of two separate PV strings with different orientations or panel types to maximize solar energy harvest.

  • Peak Shaving Functionality: Supports peak shaving in both "self-use" and "generator" modes, reducing grid consumption during high-tariff periods and optimizing energy cost savings.

  • Robust Environmental Protection: Rated IP66 for dust and water resistance, making it suitable for outdoor installation in harsh conditions. Operates reliably in a wide temperature range from -40°C to +60°C.

  • Comprehensive Safety Features: Includes DC reverse-polarity protection, ground fault monitoring, and integrated AFCI for enhanced system safety and compliance with international standards.

  • Remote Monitoring and Control: Offers connectivity via optional Wi-Fi, GPRS, or LAN modules, enabling real-time monitoring and management through a user-friendly mobile app or web platform.
