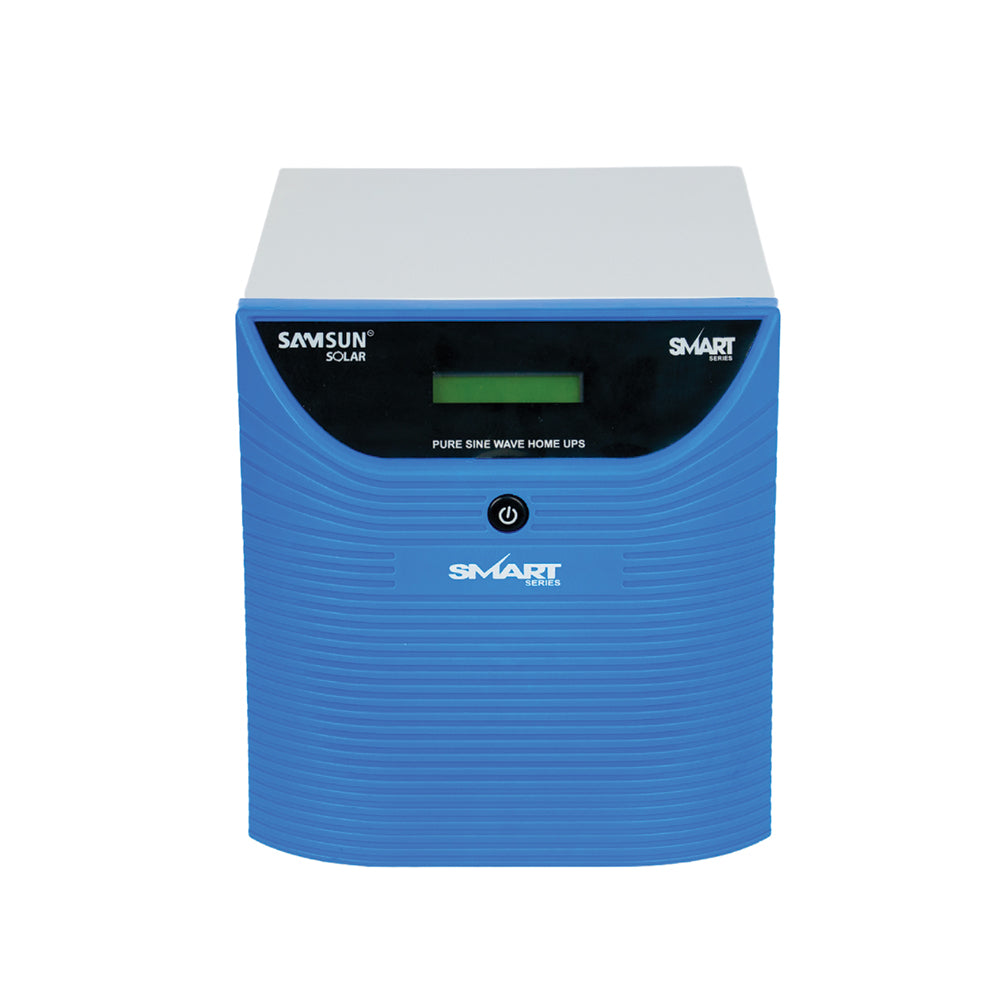

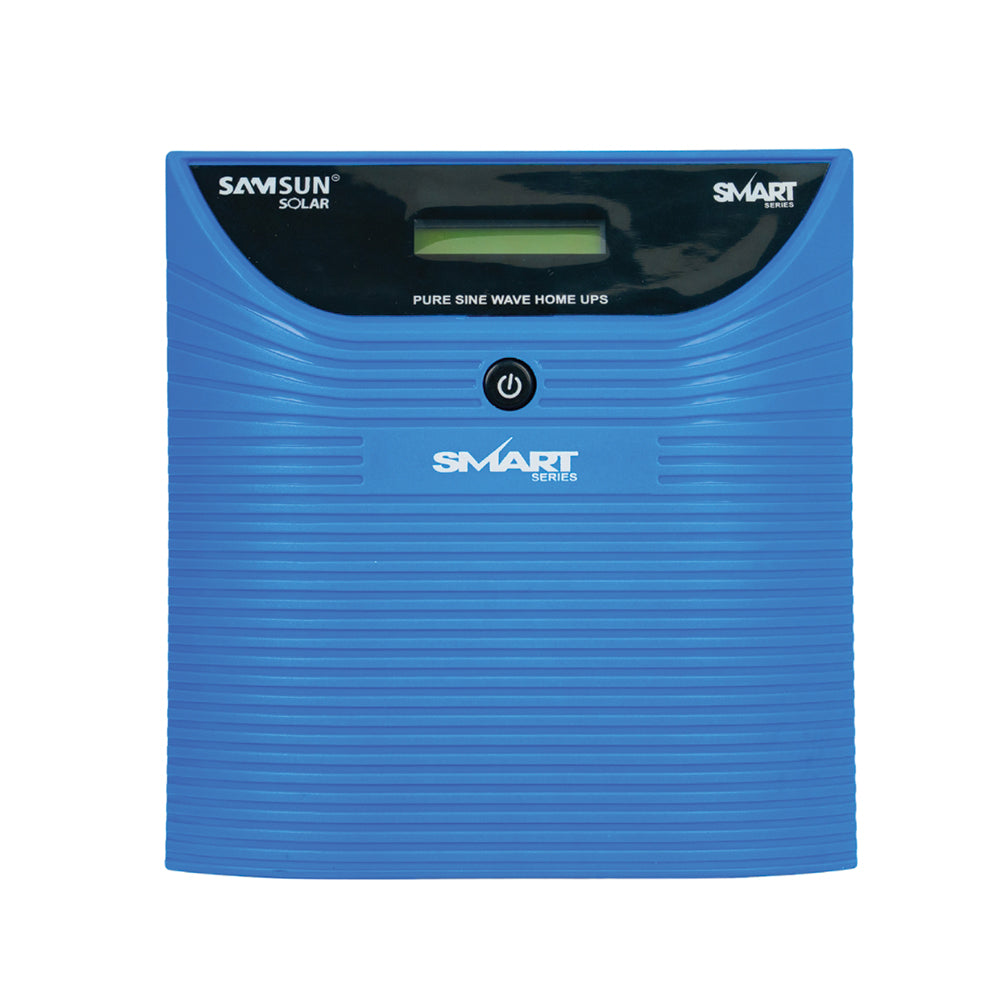

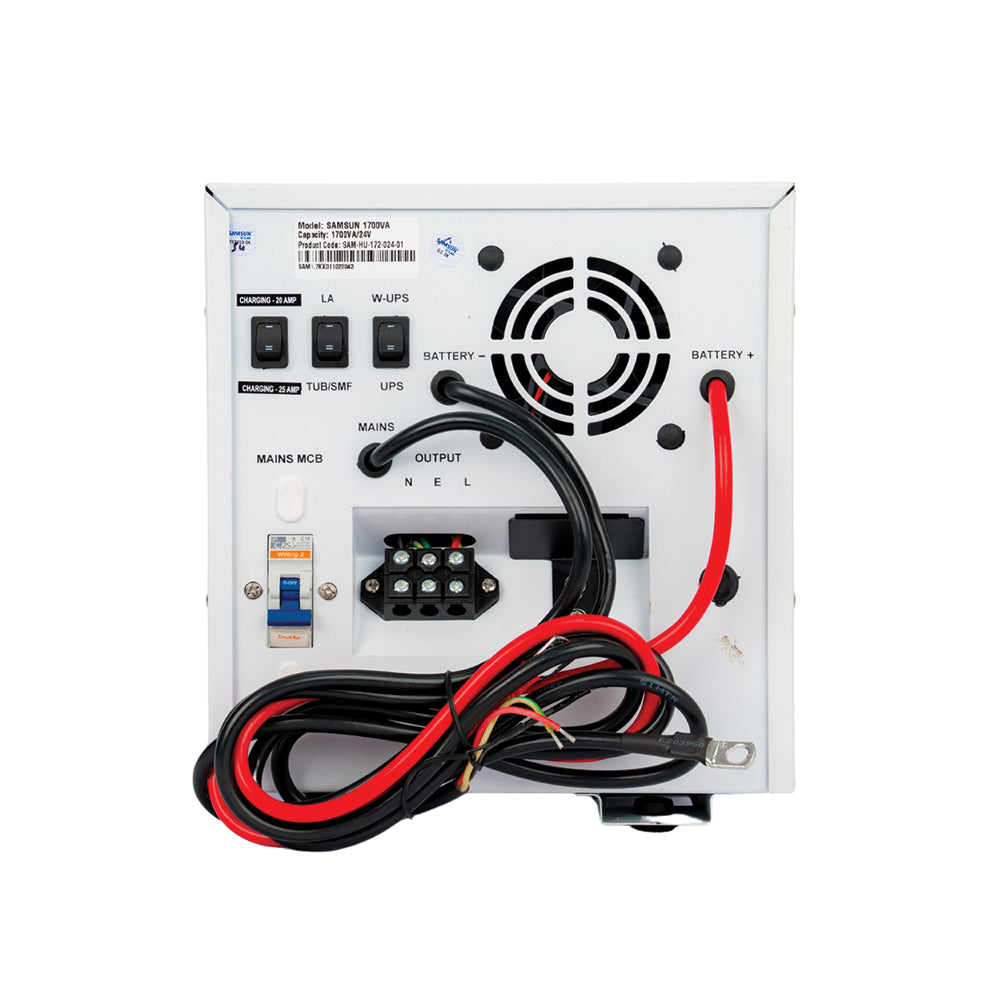

SAMSUN SOLAR SMART 1700VA/24V PURE SINE WAVE INVERTER
SAMSUN SOLAR SMART 1700VA/24V PURE SINE WAVE INVERTER
SAMSUN SOLAR SMART 1700VA/24V PURE SINE WAVE INVERTER
SAMSUN SOLAR SMART 1700VA/24V PURE SINE WAVE INVERTER

SAMSUN SOLAR SMART 1700VA/24V PURE SINE WAVE INVERTER

Brand: Samsun Solar

 370.00
Free Delivery : 1 – 3 working days

Sold By Nazeer Basha Syed Mech. & Eng. Equip. Trading Co. LLC

Product Weight : 19.3 Kgs
Colour Name : Blue/White
Dimension in mm : 340 x 230 x 260
Power Capacity : 1700VA / 24V
Number of pieces : 1 Box
Origin : Made in INDIA
Quantity:

Request a Quote

Product Overview
Highlights
  • Model:Smart Series 1700/24V
  • Output Capacity:1700VA
  • Battery Voltage:24V (supports 100–200Ah batteries)
  • Output Waveform:Pure Sine Wave
  • Output Voltage:220V ±5% or ±10%
  • Charging Current (100–135Ah):12A ±1A (factory setting)
  • Charging Current (150–200Ah):15A ±1A (factory setting)
  • Boost Voltage (LA/Flooded):14.0V ±0.2V per battery
  • Boost Voltage (SMF/Tubular):14.5V ±0.2V per battery
  • Low Battery Warning:11.0V ±0.2V per battery
  • Low Battery Cut-off:10.8V ±0.2V per battery
  • Operating Temperature:0°C to 50°C
  • Storage Temperature:0°C to 50°C
  • Humidity:0–95% RH (non-condensing)
Product Description

Product Description

The Samsun Smart Series 1700/24V is a pure sine wave home UPS designed to provide reliable backup power for residential use. With a 1700VA/24V capacity, it ensures uninterrupted power during outages and supports fast battery charging even at low grid voltages (down to 70V). This model features an independent charger for deep-discharge battery recovery, comprehensive protection mechanisms, and a user-friendly interface. Ideal for powering sensitive household electronics, it delivers clean and stable power with pure sine wave output.

Key Features

Pure Sine Wave Output – Safe for sensitive devices (e.g., laptops, TVs, refrigerators).

Dual Operation Modes – UPS mode (fast <10ms switchover) and WUPS mode (wide voltage range: 90–295V).

Fast Battery Charging – 15A charging current for quicker battery replenishment.

Deep Discharge Recovery – Independent charger revives deeply discharged batteries.

Wide Voltage Tolerance – Operates in low-grid conditions (down to 70V).

Complete Protection – Safeguards against backfeed, phase-to-phase faults, and overloads.

User-Friendly Interface – Clear indicators and easy monitoring.

Compact Design – Suitable for home use with efficient cooling.

Protection Features

  • Backfeed Protection – Prevents reverse current flow.

  • Phase-to-Phase Protection – Safeguards against grid imbalances.

  • Overload Protection – Handles surges beyond 100% capacity.

  • Low Battery Cut-off – Prevents battery damage from deep discharge.

Ideal For:

✔ Homes with frequent power outages
✔ Low-voltage grid areas
✔ Users needing fast battery charging
✔ Sensitive electronics requiring clean power
