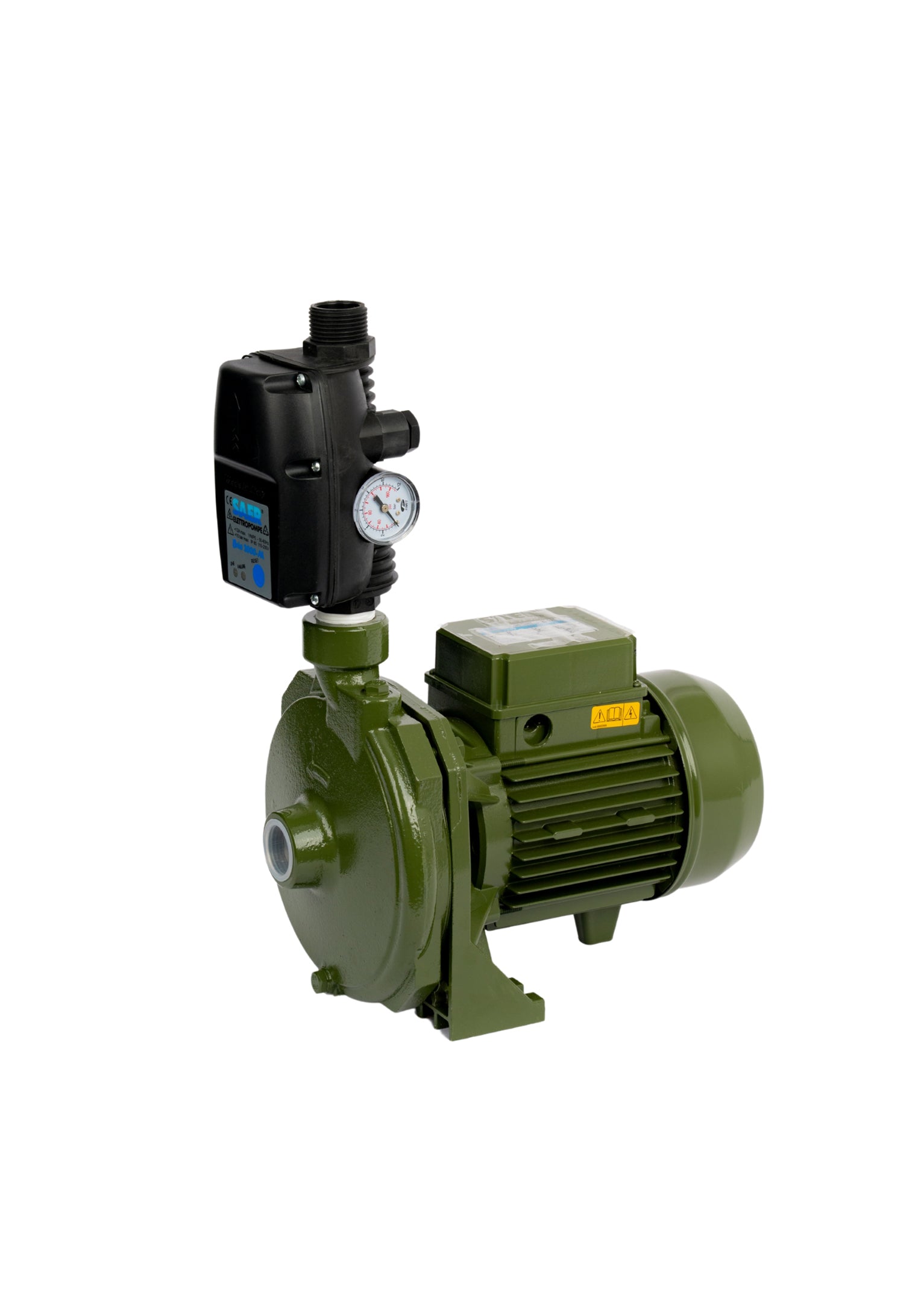

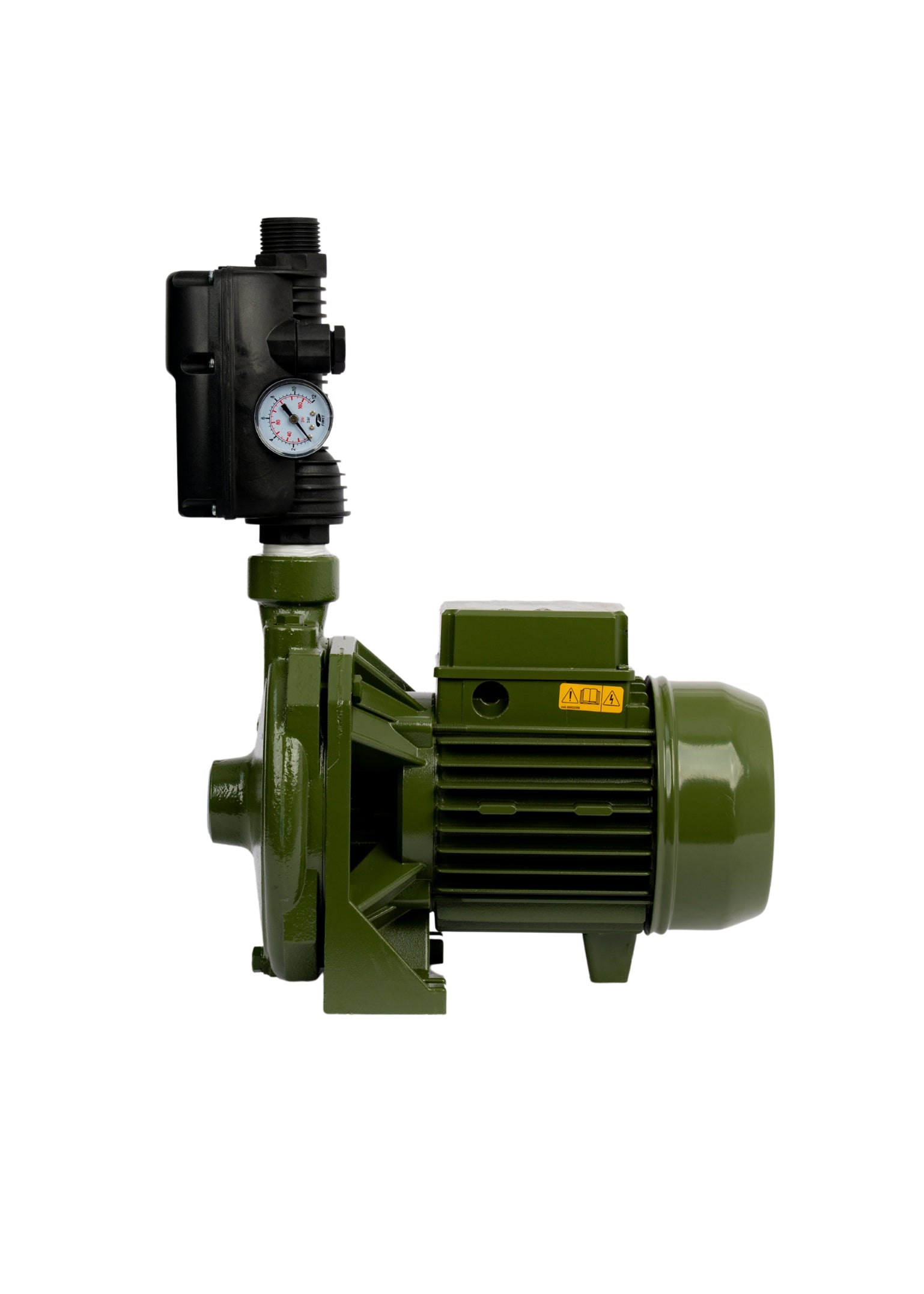

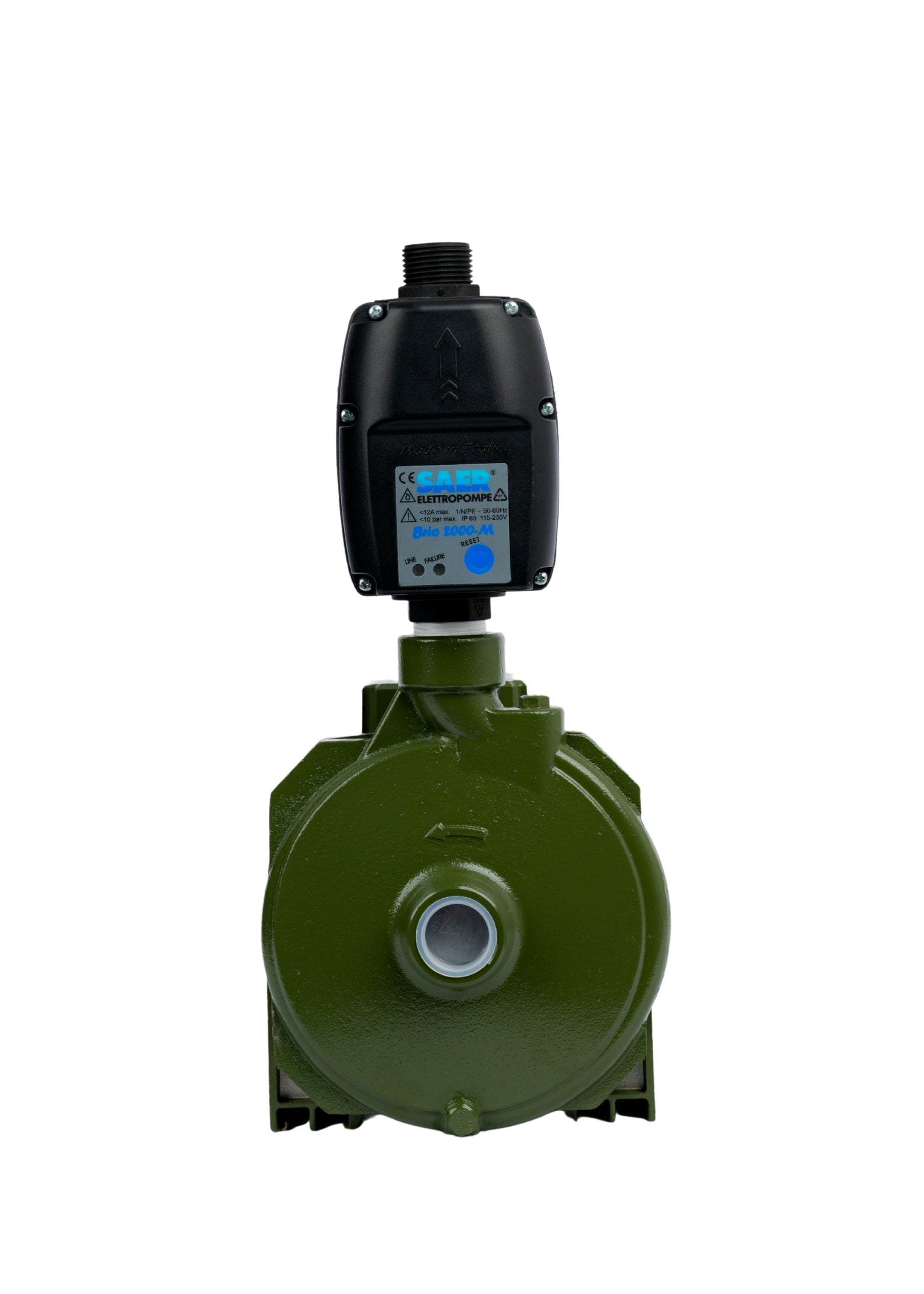

SAER CMP79-N-230V 1HP 1PH 50HZ+TE PMP CTRL KIT
Choose options
- Model:CMP 79
- Pump Type:Single-stage Centrifugal
- Impeller Type:Single Vane Impeller
- Speed:2850 rpm
- Stages:1
- Max Flow Rate:6 m³/h
- Head Range:20.1 - 34.1 m
- Head at Zero Flow:34.1 m
- Max Working Pressure:48.4 psi
- Max Absorbed Power:0.85714 hp

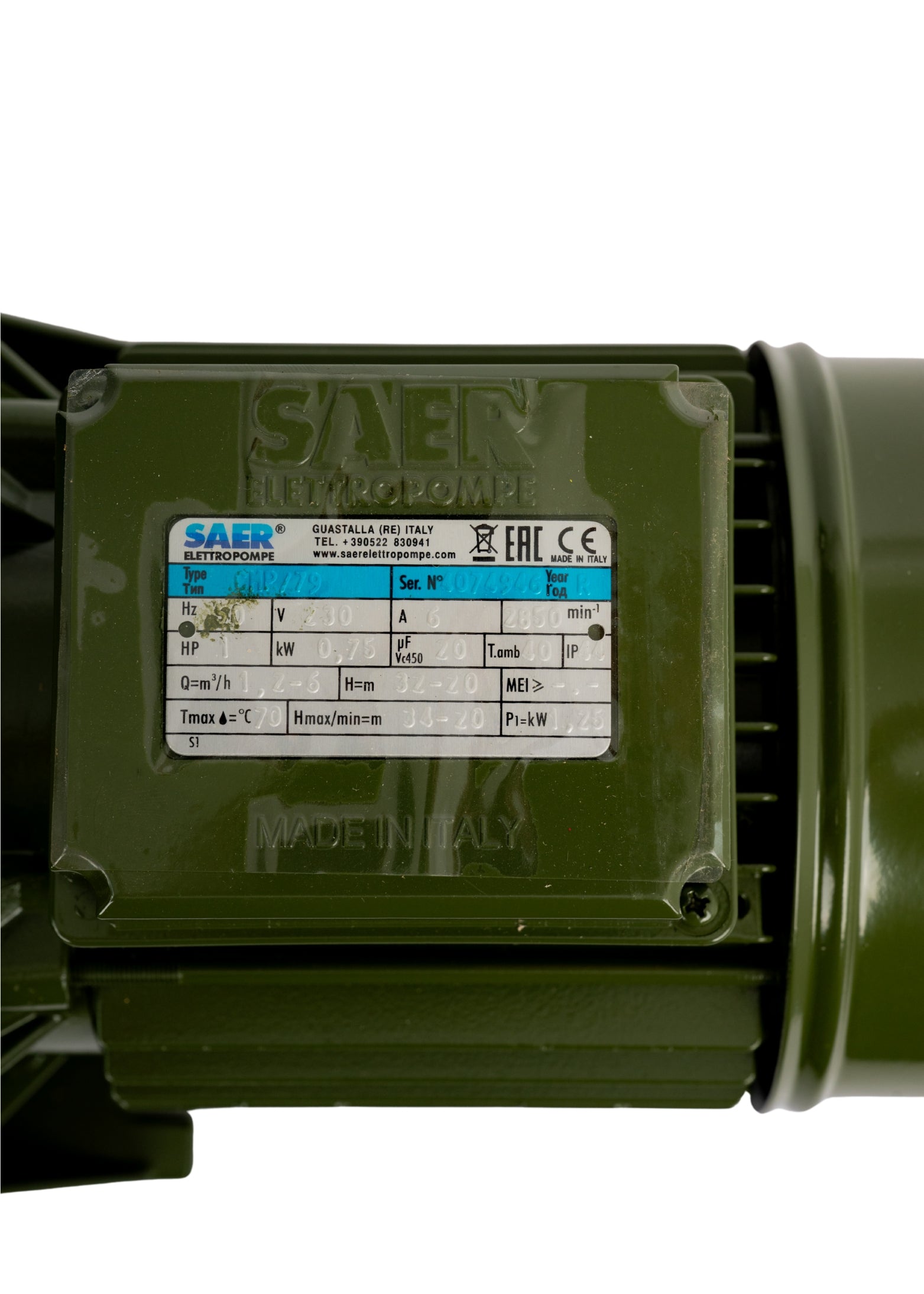

- Manufacturer/Type:SAER 80.2 - 0.75
- Rated Power:1.0058 hp
- Efficiency:44%
- Voltage:230 V
- Speed:2950 rpm
- Frequency:50 Hz
- Protection Class:IP55
- Insulation Class:F
- Shaft:Stainless Steel AISI 420 (1.4028)
- Impeller:Thermoplastic Resin
- Pump Body:Cast Iron EN-GJL-200
- Support:Aluminum
- O-Ring:NBR Rubber
- Mechanical Seal:BXPG (Graphite/Ceramic/NBR)
- Fluid Type:Clean water
- Max Flow:6 m³/h
- Head Range:20.1 - 34.1 m
- Connection Size:G 1\
- inlet/outlet
The CMP 79 is a compact and efficient single-stage centrifugal pump designed for a variety of water transfer applications. Featuring a single-vane impeller and corrosion-resistant materials, this pump is ideal for domestic, agricultural, and light industrial use. With its robust construction and reliable SAER motor, the CMP 79 delivers consistent performance in clean water systems, irrigation, and general fluid transfer applications.
Key Features
-
Compact Design: Space-saving dimensions ideal for limited installation spaces
-
Corrosion-Resistant Materials: Stainless steel shaft and thermoplastic impeller for durability
-
Efficient Performance: Single-vane impeller design optimized for clean water applications
-
Reliable Motor: SAER motor with IP55 protection for dust and water jet resistance
-
Thermal Protection: Class F insulation ensures reliable operation under thermal stress
-
Easy Maintenance: Accessible design with standard mechanical seal
-
Versatile Installation: Multiple mounting options with standardized flange connections
-
Energy Efficient: Optimized hydraulic design for reduced power consumption
Typical Applications
-
Domestic water supply systems
-
Agricultural irrigation
-
Garden and landscape watering
-
Industrial water circulation
-
Pressure boosting systems
-
General clean water transfer
The CMP 79 combines robust construction with efficient performance, making it an excellent choice for various water transfer applications where reliability and compact design are essential. Its quality materials and reliable motor ensure long service life with minimal maintenance requirements.
