Shipping calculated at checkout

Product Overview
Highlights
  • Motor Model:CL95-5T
  • Motor Size:4-inch diameter
  • Phase:Three-phase
  • Frequency:50 Hz
  • Protection Class:IP68 (Fully Submersible)
  • Insulation Class: F
  • Cooling Method:IC40
  • Service Factor:1.0
  • Maximum Water Temperature:+35°C
  • Mounting Flange:V19 with stud bolts
  • Duty Cycle:S1 (Continuous)
  • Rated Power:4 kW
  • Horsepower:5.5 HP
  • Voltage:400 V
  • Current:10.6 A
  • Speed:2830 RPM
  • Efficiency:78%
  • Power Factor:0.70
  • Starting Torque Ratio (Ca/Cn):2.9
  • Starting Current Ratio (Ia/In):4.5
  • Axial Load Capacity:3000 N
  • Cable Specification:4x1 mm²
  • Cable Length:3 meters
SAER CL95-5T-5.5HP-4KW-3PH-SPMP
Product Description

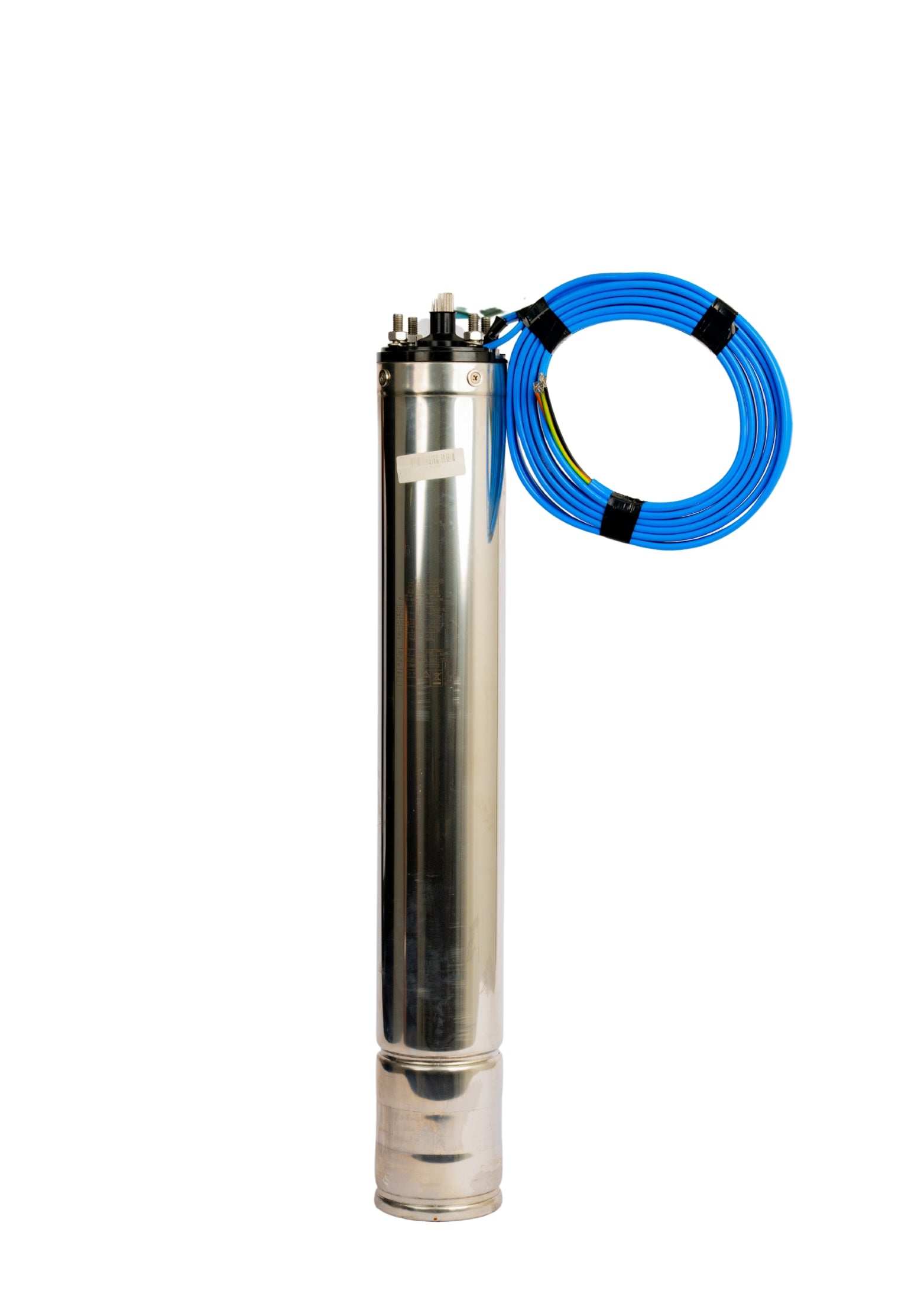

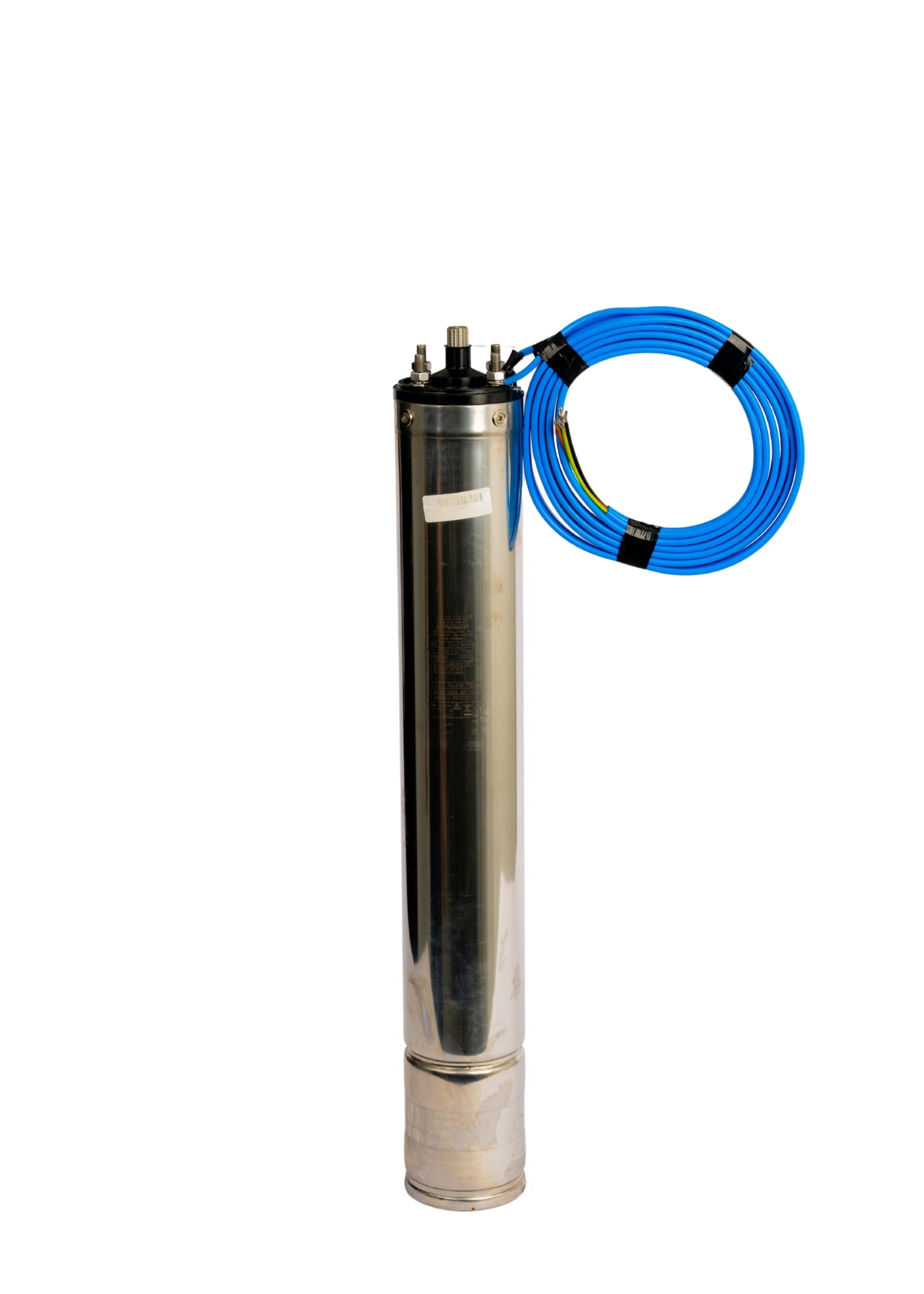

The CL95-5T is a high-performance 4-inch three-phase submersible motor designed for demanding underwater applications. With a power rating of 4 kW (5.5 HP), this motor delivers reliable and efficient operation for various water pumping systems. Engineered with robust construction and built to international standards, the CL95-5T ensures long service life and dependable performance in wells, boreholes, irrigation systems, and industrial water supply applications.

Key Features

  • High Power Output - 4 kW (5.5 HP) rating provides strong pumping performance for demanding applications

  • Complete Waterproof Protection - IP68 rating ensures reliable operation when fully submerged

  • Excellent Efficiency - 78% efficiency rating optimizes energy consumption and operating costs

  • Three-Phase Reliability - Superior starting and running performance compared to single-phase motors

  • Robust Construction - Designed to withstand harsh underwater conditions and continuous operation

  • Thermal Resilience - Class F insulation provides superior thermal endurance for long service life

  • Favorable Starting Characteristics - Good starting torque (2.9 Ca/Cn) with moderate starting current (4.5 Ia/In)

  • Ready-to-Install - Pre-fitted with 3-meter 4x1 mm² submersible cable

  • International Compliance - Meets IEC EN 60034-1, IEC EN 60204-1, and NEMA MG1 standards

  • Easy Mounting - V19 flange with stud bolts enables secure and straightforward installation

  • Continuous Duty Rating - S1 duty cycle allows for uninterrupted operation

Applications

  • Deep well water supply systems

  • Agricultural irrigation projects

  • Industrial water transfer and circulation

  • Borehole pumping applications

  • Municipal water supply systems

  • Water boosting and pressure systems

  • Groundwater monitoring and extraction
