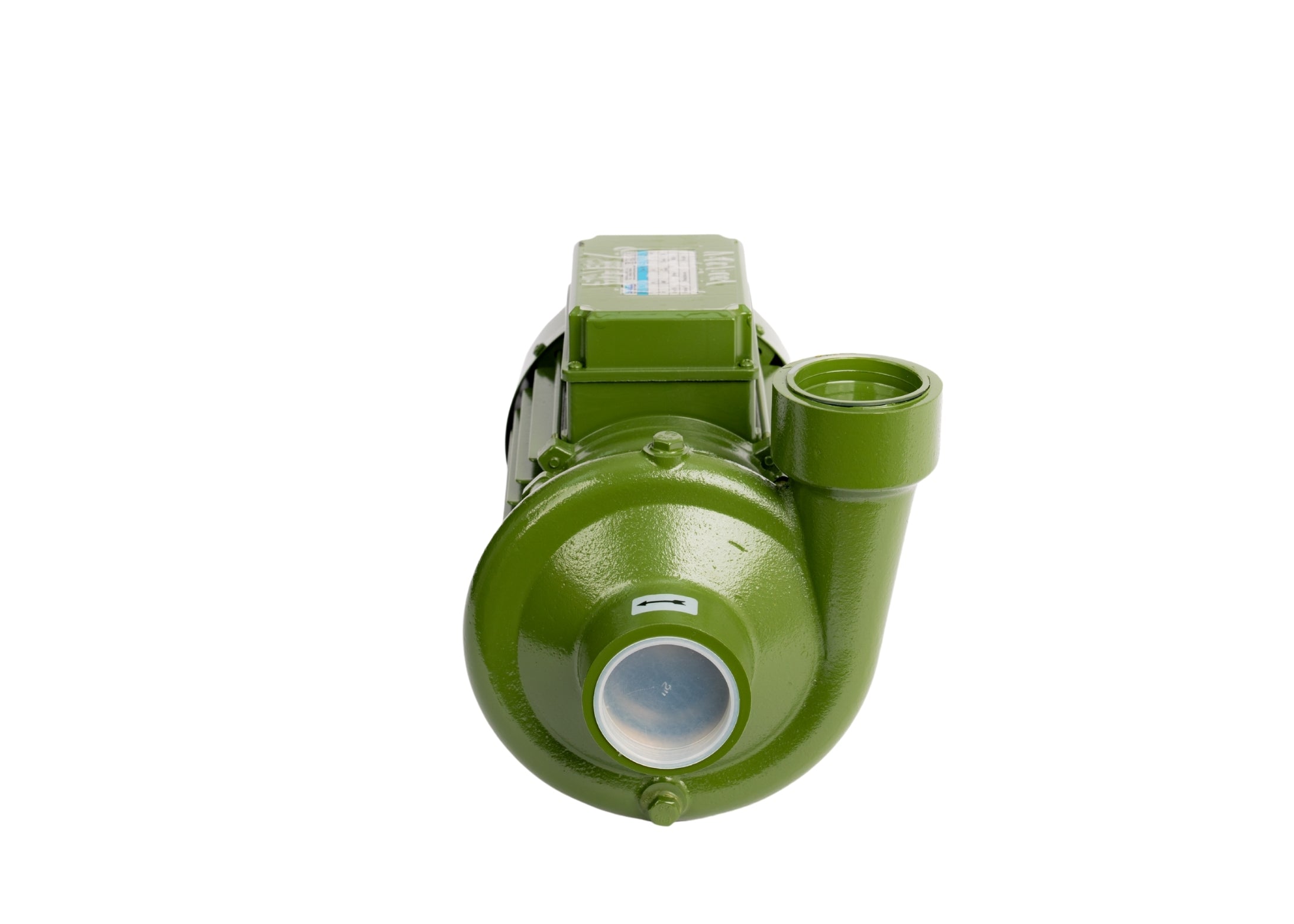

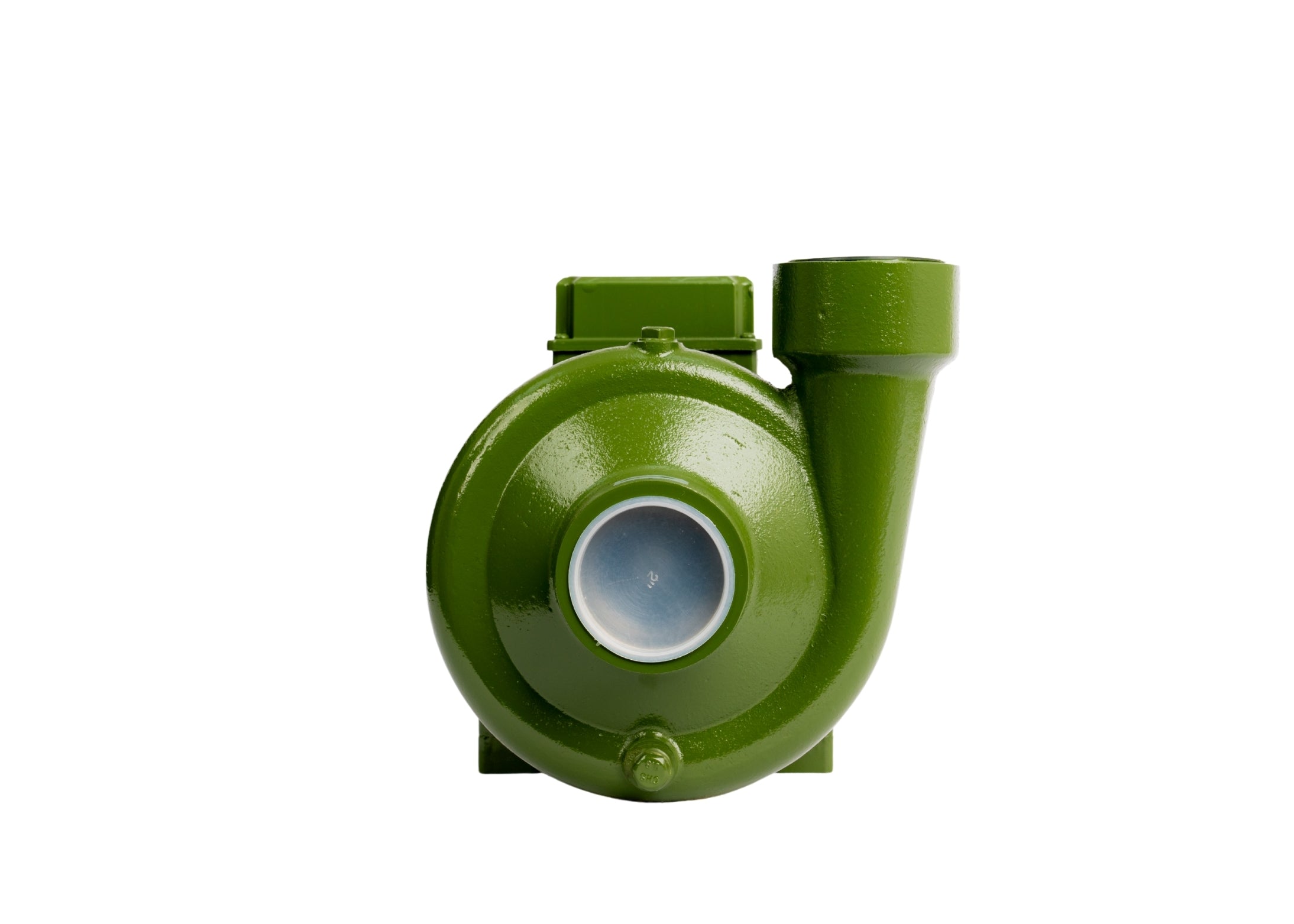

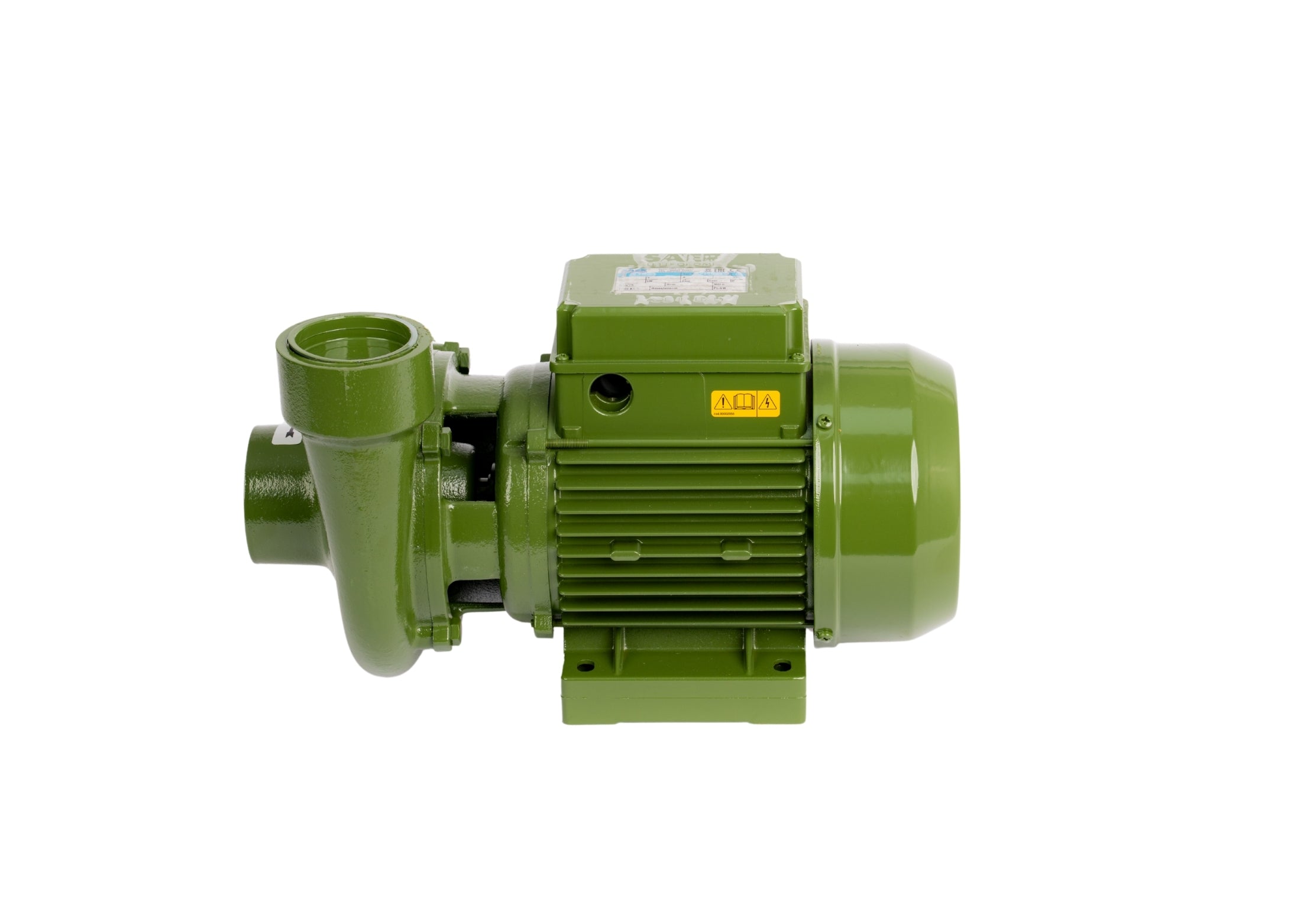

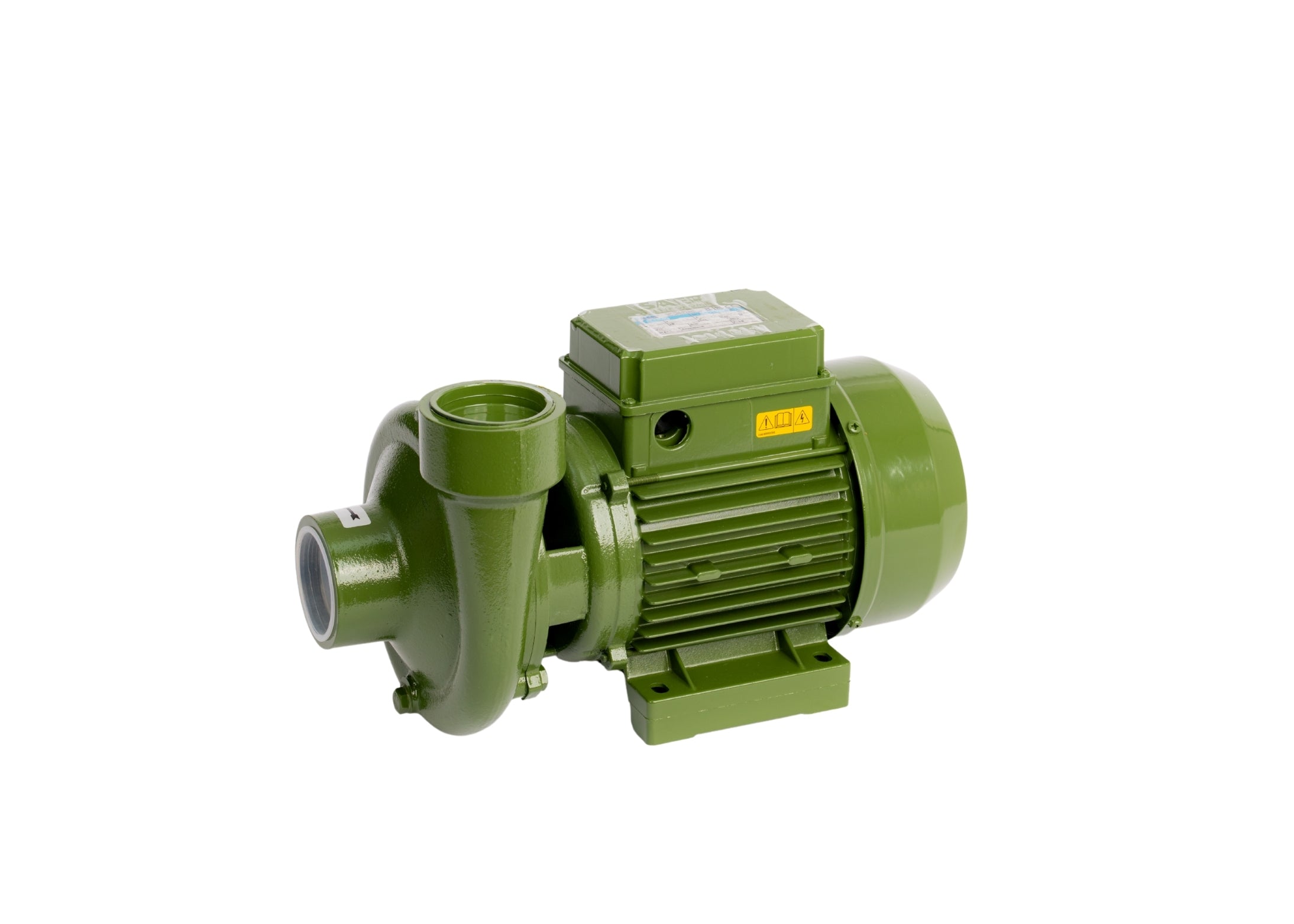

SAER BP5-G-230V-2HP-1PH-50HZ PMP

The BP 5 is a single-stage electric pump designed for efficient and reliable fluid transfer, particularly for clean water applications. It is built with durability and performance in mind, incorporating robust materials and a high-efficiency motor. Suitable for industrial, commercial, or residential use, this pump offers a balance of compact design and strong operational capabilities.

Key Features

• Robust Construction:

  • Shaft: Stainless steel (ASI 420 / 1.4028)

  • Pump Body & Support: Cast iron (EN-GJL-200)

  • Mechanical Seal: BXPG (Ceramic/NBR)

  • O-Ring: NBR Rubber

• High-Efficiency Motor:

  • SAER motor with high torque and reliable performance under continuous operation.

  • Designed for 230V, 50Hz power supply, suitable for European standards.

• Compact Design:

  • Dimensions optimized for space-constrained installations.

  • Key dimensions include:

    • a = 70 mm

    • b = 82 mm

    • f = 294 mm

    • h1 = 96 mm, h2 = 122 mm

• Versatile Performance:

  • Suitable for pure water and similar fluids.

  • Operating temperature: 20°C

  • Handles a wide range of flow rates (0–11.2 l/s) and head (6.03–23.8 m).

• Reliable Sealing & Protection:

  • Mechanical seal ensures leak-free operation.

  • IP44 protection against dust and water splashes.

  • Class F insulation for enhanced thermal endurance.

Applications

• Water supply systems

• Irrigation

• Industrial cooling systems

• Building services and HVAC

• General purpose water transfer
