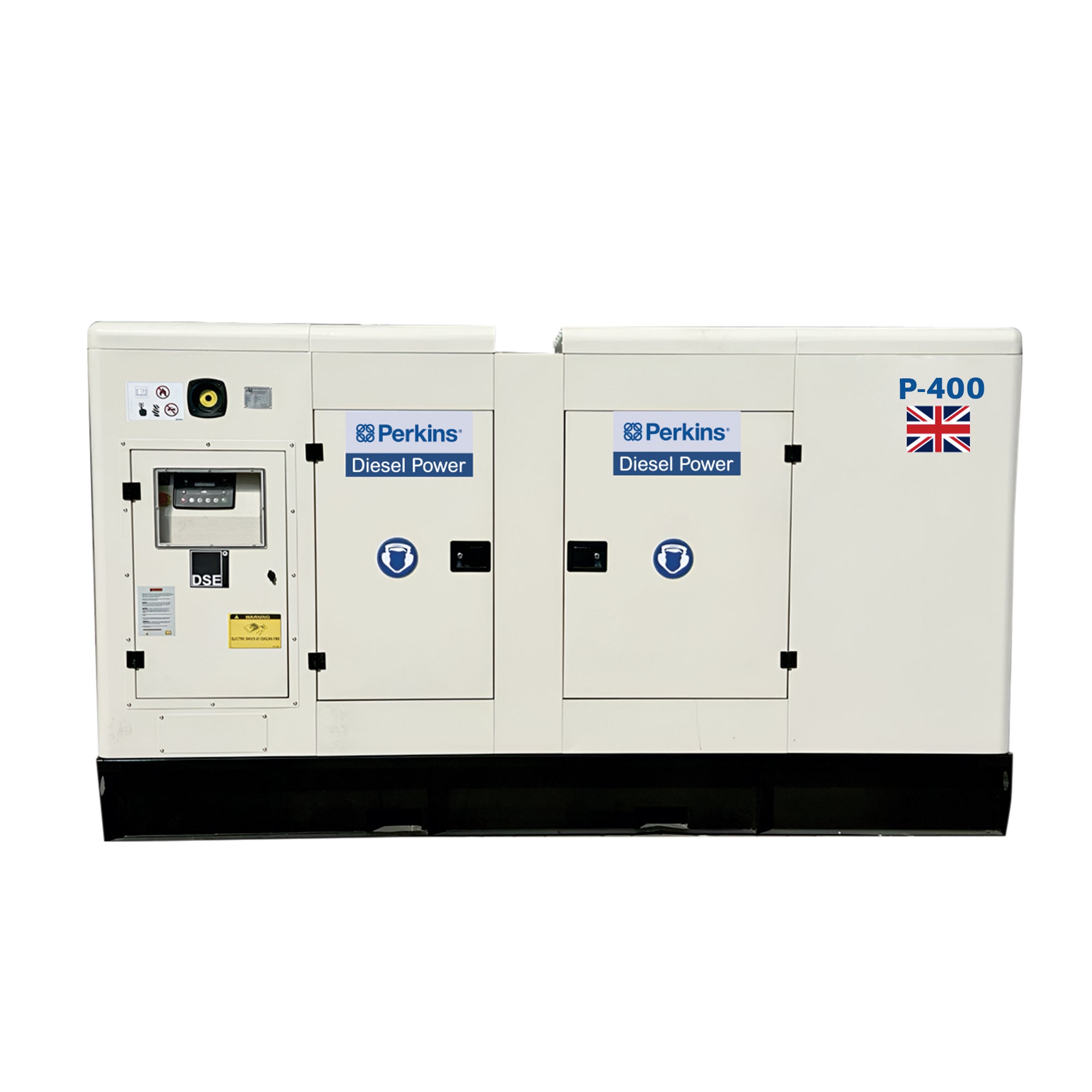

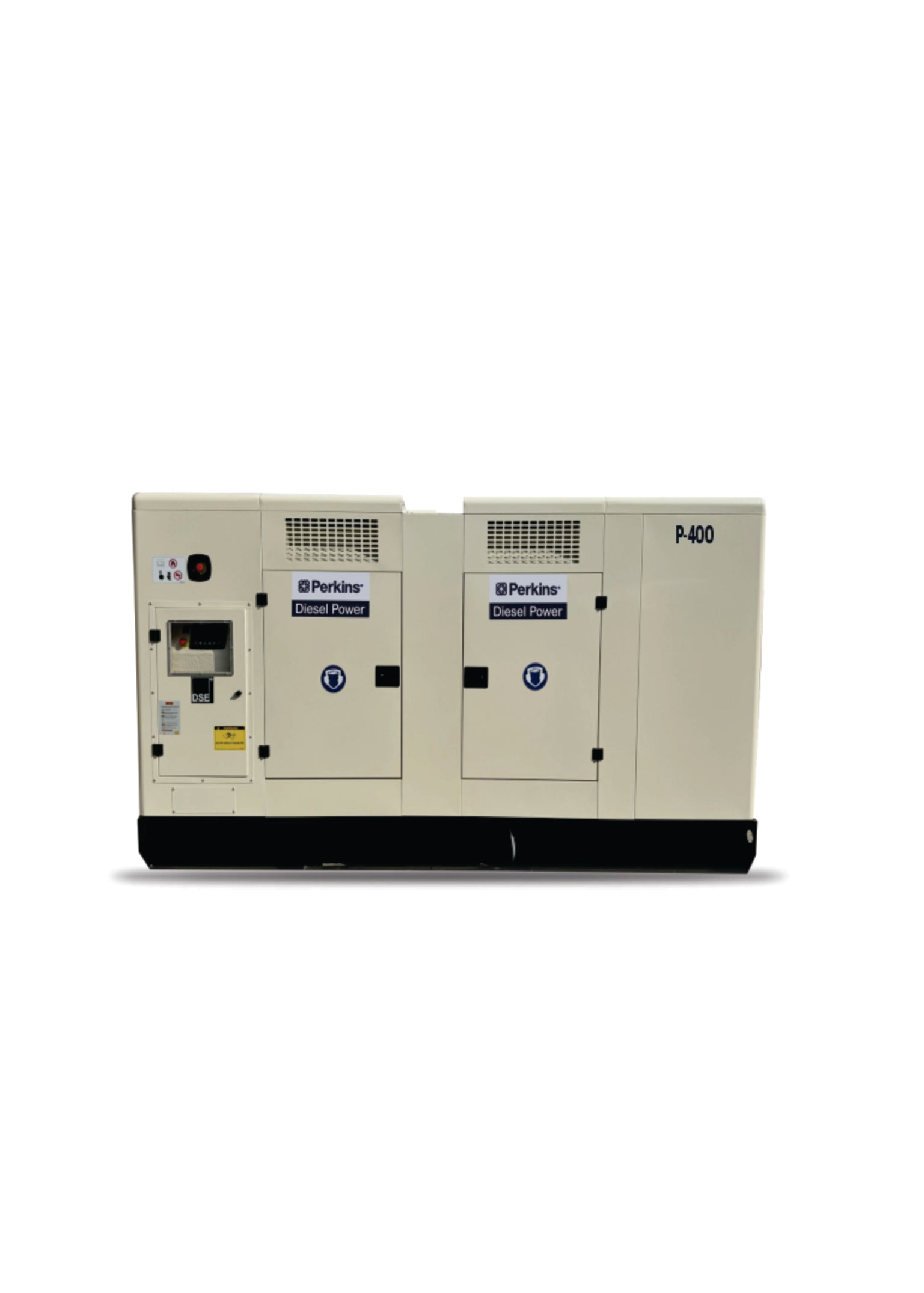

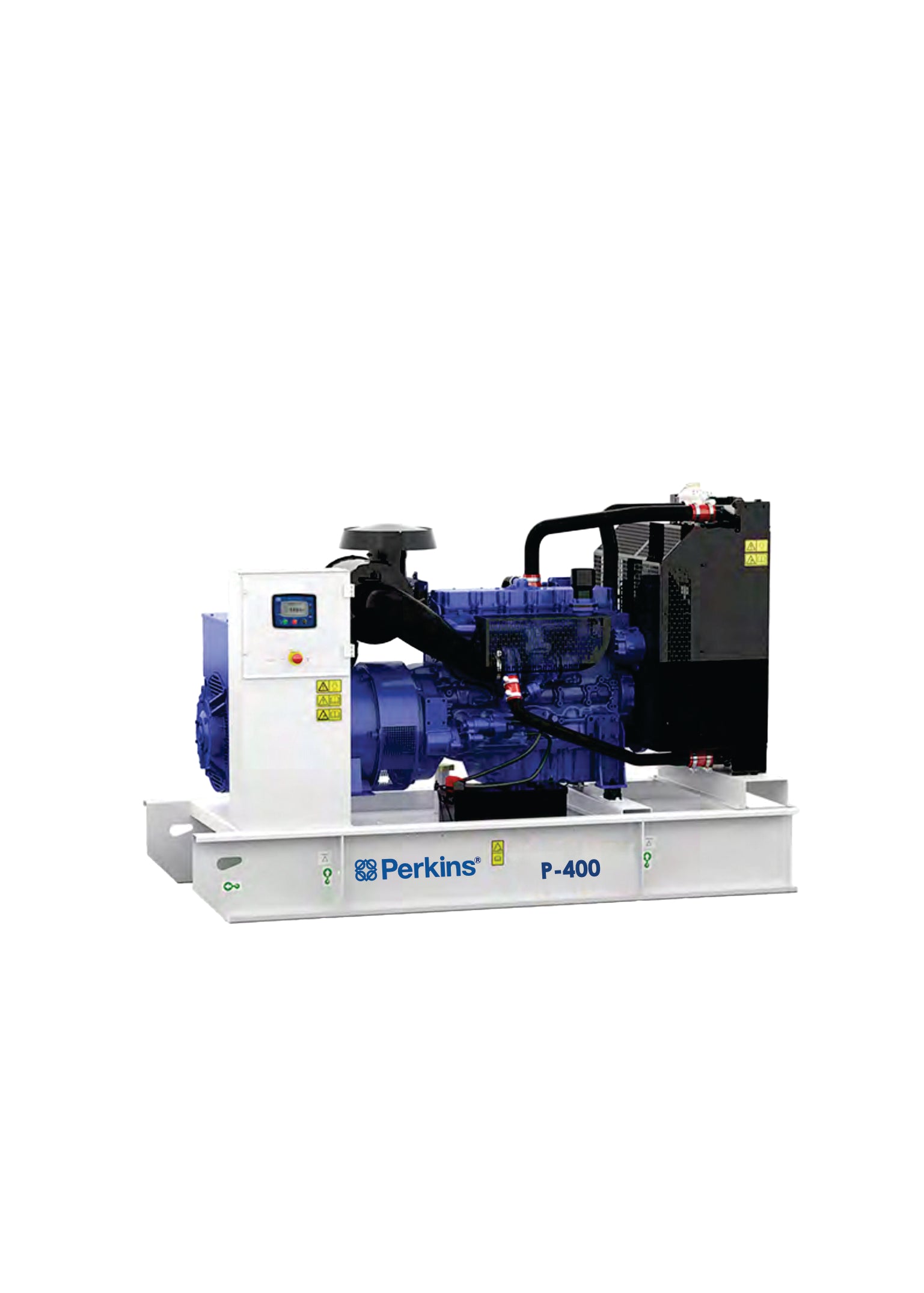

Perkins P-400 Generating Set
Perkins P-400 Generating Set

Perkins P-400 Generating Set

Shipping calculated at checkout

Product Overview
Highlights
  • Model:Perkins P-400
  • Prime Power:350 kVA / 280 kW (50 Hz)
  • Prime Power400 kVA / 320 kW (60 Hz)
  • Standby Power:400 kVA / 320 kW (50 Hz)
  • Standby Power:438 kVA / 350 kW (60 Hz)
  • Voltage & Frequency:380–415 V, 3-Phase, 50 Hz / 60 Hz
  • Engine Model:Perkins 2206A-E13TAG2/2206C-E13TAG2
  • Cylinders:6, Vertical In-Line
  • Aspiration:Turbocharged & Air-to-Air Charge Cooled
  • Displacement:12.5 Liters
  • Governing Type:Electronic
  • Alternator Make/Model:UPS / Leroy Somer UPS314D/LSA(TAL)046C
  • Insulation Class:H
  • Voltage Regulation:±1%
  • Control Panel:Deep Sea 4000 Series
  • Fuel Consumption:71 L/hr @ 100% load (50 Hz)
  • Coolant Capacity:51.4 L
  • Weight:2984 kg (Standard)
  • Weight:3316 kg (With Canopy)
Perkins P-400 Generating Set
Product Description

The Perkins P-400 is a heavy-duty industrial diesel generator set designed for high-capacity prime and standby power applications in the most demanding environments. Built with a powerful 6-cylinder turbocharged and charge-cooled Perkins engine and a high-performance Leroy Somer alternator, this generator delivers reliable, stable power for large industrial facilities, data centers, mining operations, and critical backup systems. Featuring electronic governing, Class H insulation, and a comprehensive Deep Sea 4000 Series control panel, the P-400 ensures superior performance, operational reliability, and long-term durability for continuous power requirements.

Key Features

  • High-Performance Engine: 6-cylinder, 12.5L turbocharged and charge-cooled diesel engine for maximum power output

  • Electronic Governing: Ensures precise frequency and voltage stability under varying load conditions

  • Class H Insulation: Superior thermal endurance for extended operation in high-temperature environments

  • Deep Sea 4000 Control Panel: Advanced LCD interface with auto-start, comprehensive monitoring, and alarm system

  • Dual Frequency Operation: Compatible with both 50 Hz and 60 Hz applications worldwide

  • Heavy-Duty Construction: Robust design for continuous operation in demanding industrial environments

  • High-Capacity Cooling System: Large 51.4L coolant capacity for optimal temperature management

  • Integrated Fuel System: Baseframe includes fuel tank supporting approximately 8 hours of full-load operation

  • Vibration Isolation: Anti-vibration mounting pads minimize noise and protect components

  • Comprehensive Safety System: Includes overspeed, low oil pressure, high temperature, and electrical fault protection

  • International Compliance: Meets ISO 8528, IEC 60034, VDE 0530, and other global standards

  • Factory Tested: Fully load-tested and system-validated before dispatch

  • 12-Month Warranty: Comprehensive coverage for peace of mind
