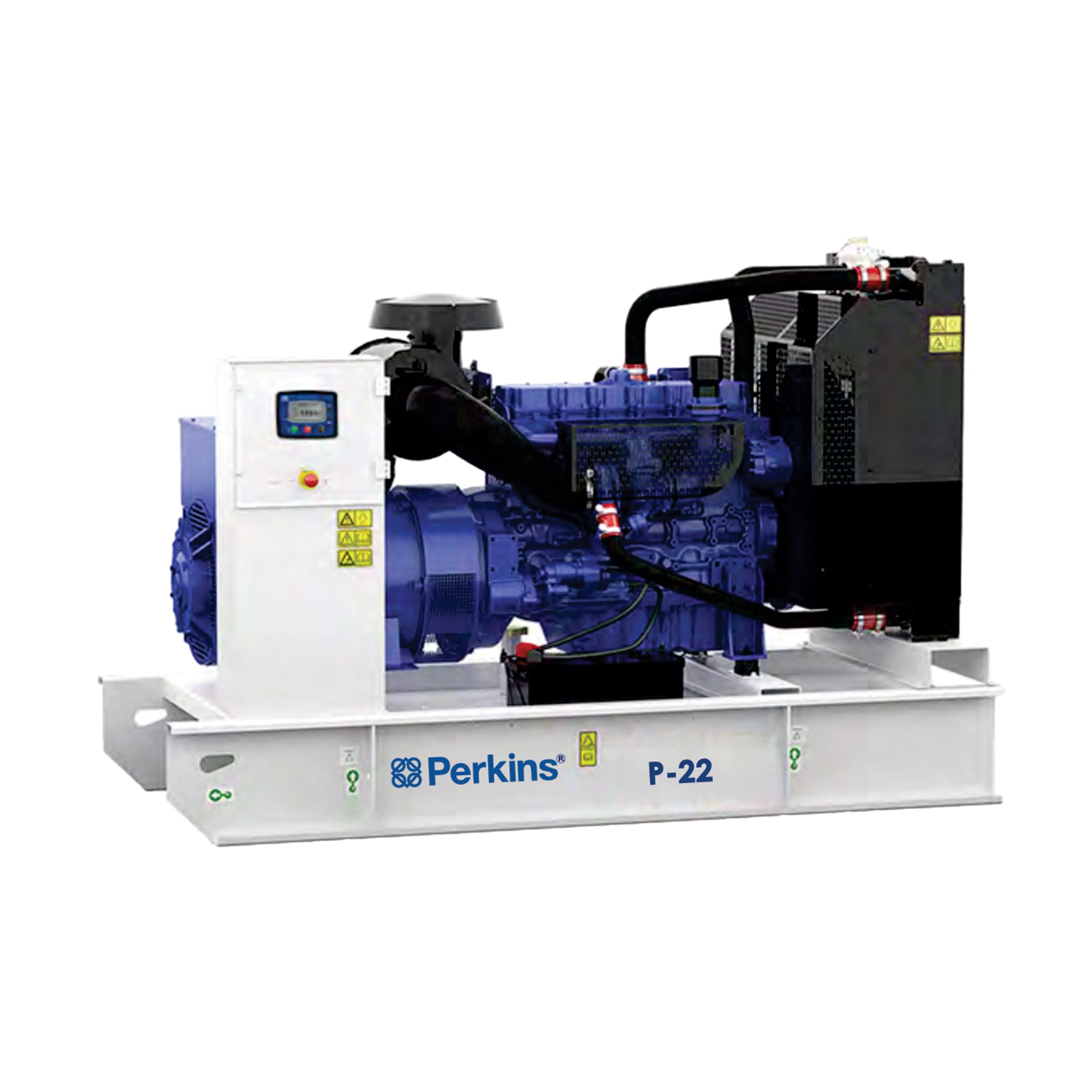

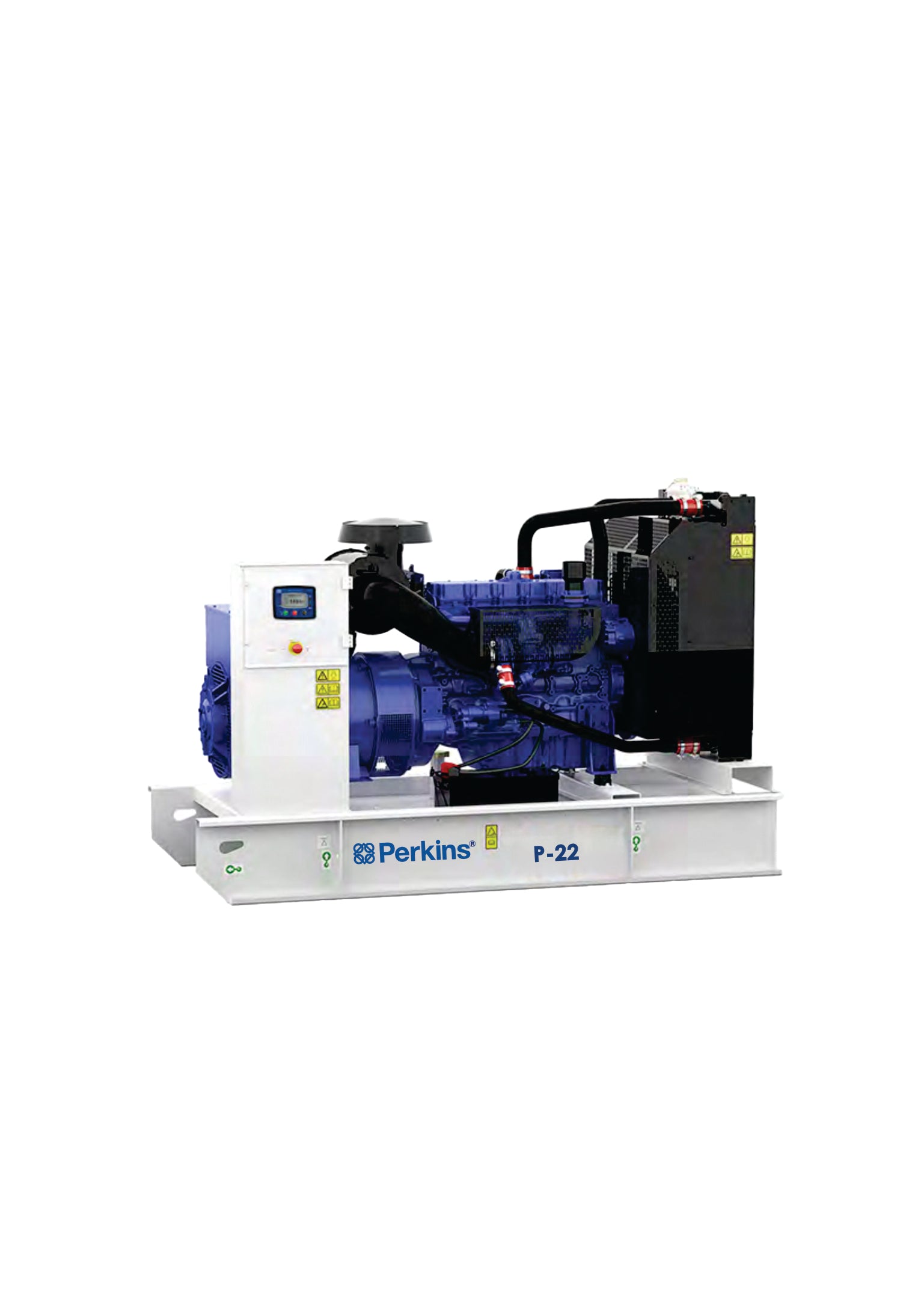

Perkins P-22 Generating Set
Perkins P-22 Generating Set

Perkins P-22 Generating Set

Shipping calculated at checkout

Product Overview
Highlights
  • Generating Set Model:Perkins P-22
  • Prime Power:24.2 kVA / 19.3 kW (60 Hz)
  • Prime Power:20 kVA / 16 kW (50 Hz)
  • Standby Power:22 kVA / 17.6 kW (50 Hz)
  • Standby Power:26.6 kVA / 21.3 kW (60 Hz)
  • Voltage & Frequency:380-415 V, 3 Phase, 50 Hz / 60 Hz
  • Engine Model:Perkins 404A-22G1
  • Cylinders:4, Vertical In-Line
  • Displacement:2.216 Liters
  • Aspiration:Naturally Aspirated
  • Governing Type:Electronic
  • Compression Ratio:23.3:1
  • Alternator Make & Model:UPS / Leroy Somer UPS148D/LSA(TAL)040C
  • Insulation Class:H
  • Voltage Regulation:±1%
  • Control Panel:Deep Sea 4000 Series
  • Fuel Consumption @100% Load:5.3 L/hr (50 Hz)
  • Fuel Consumption @100% Load:6.2 L/hr (60 Hz)
  • Coolant Capacity:7.0 Liters
  • Weight:540 kg (Standard)

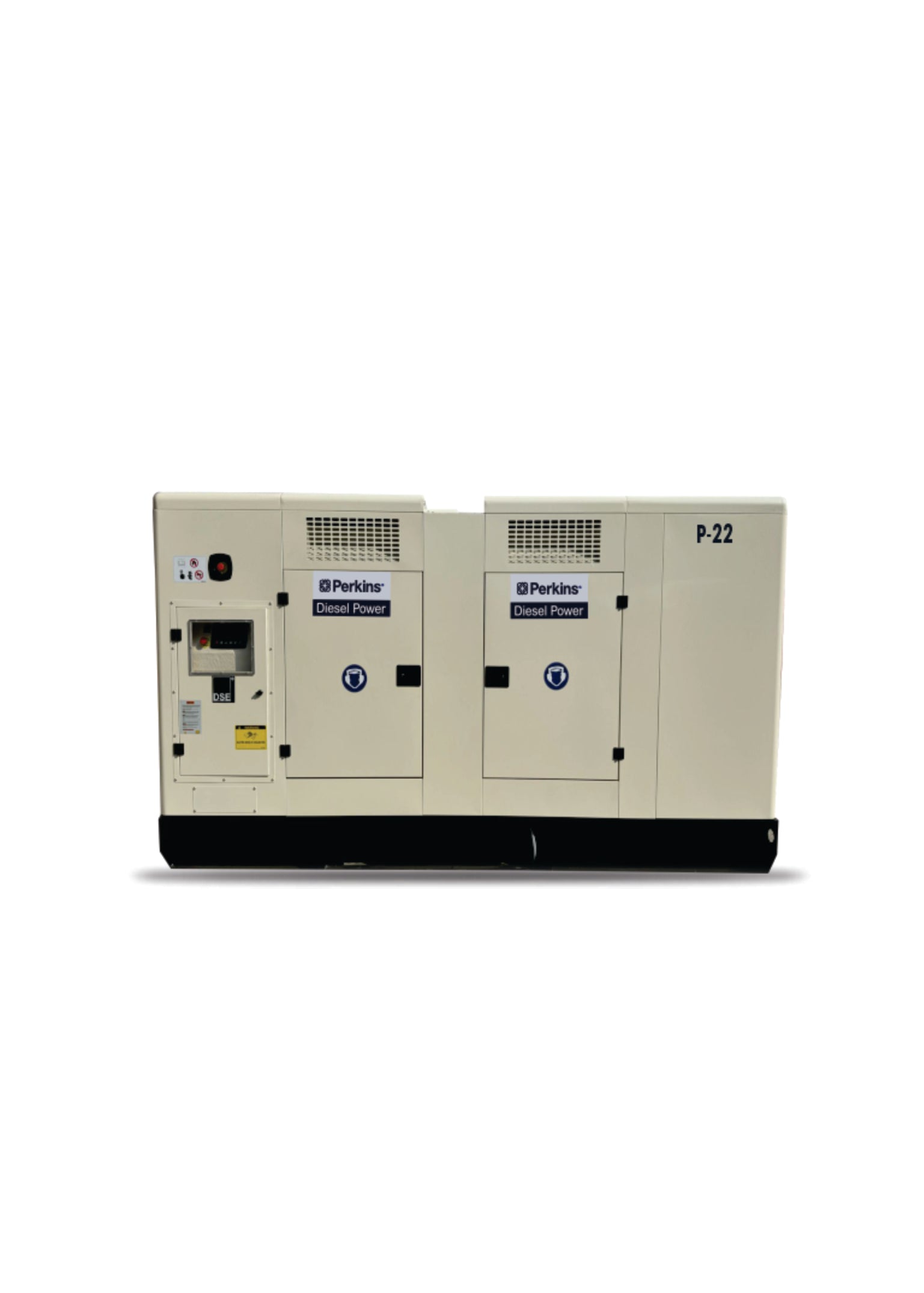

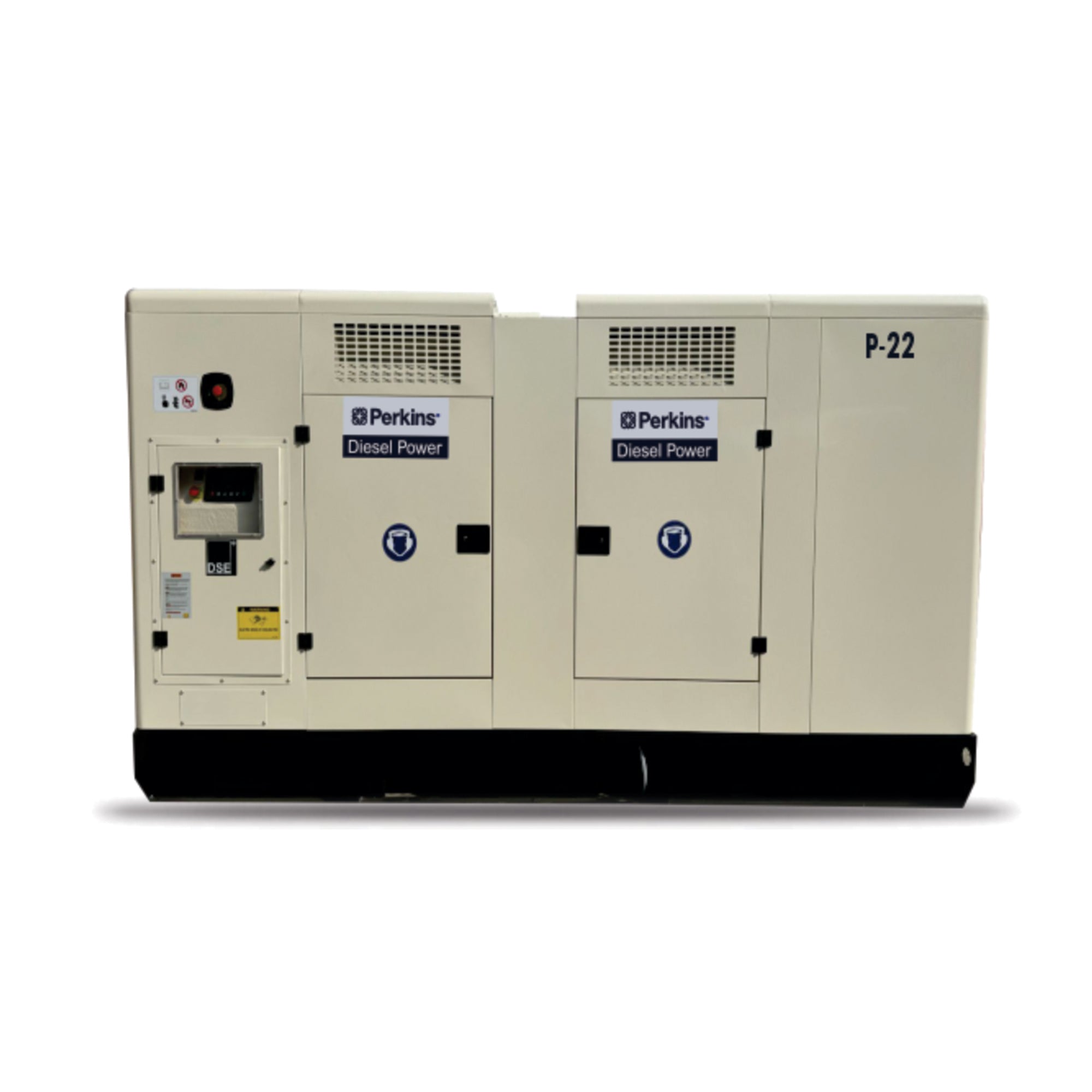

  • Weight:600 kg (With Soundproof Canopy)
Perkins P-22 Generating Set
Product Description

The Perkins P-22 is a compact yet powerful diesel generating set designed for reliable prime and standby power applications. Featuring a 4-cylinder Perkins engine with electronic governing and a high-efficiency Leroy Somer alternator with Class H insulation, this generator delivers stable power for small to medium commercial, industrial, and backup power needs. With its compact dimensions and comprehensive Deep Sea 4000 Series control system, the P-22 offers exceptional performance in space-constrained environments while maintaining full industrial-grade reliability.

Key Features

  • Electronic Governing: Precision electronic governor ensures stable frequency and voltage regulation

  • Compact Design: Exceptionally small footprint (1.353m L × 0.53m W) ideal for space-limited installations

  • High-Efficiency Alternator: Leroy Somer alternator with Class H insulation for maximum thermal endurance

  • Advanced Control System: Deep Sea 4000 Series with LCD display, auto-start, and comprehensive monitoring

  • Dual Frequency Capability: Operates at both 50 Hz and 60 Hz for global application flexibility

  • Integrated Fuel System: Baseframe with integral fuel tank for approximately 8 hours of full-load operation

  • Vibration Isolation: Anti-vibration mounting pads for smooth, quiet operation

  • Comprehensive Safety Features: Full protection against overspeed, low oil pressure, high temperature, and electrical faults

  • Quality Compliance: Meets BS4999, IEC 60034, VDE0530, NEMA MG 1.22, and ISO 8528 standards

  • Factory Tested: Complete load testing and system verification before dispatch

  • 12-Month Warranty: Comprehensive warranty coverage

Control & Monitoring

  • Generator frequency, voltage, and current monitoring

  • Engine oil pressure and coolant temperature

  • Battery voltage and charging status

  • Emergency stop functionality

  • Comprehensive fault diagnostics

  • Run hours counter
