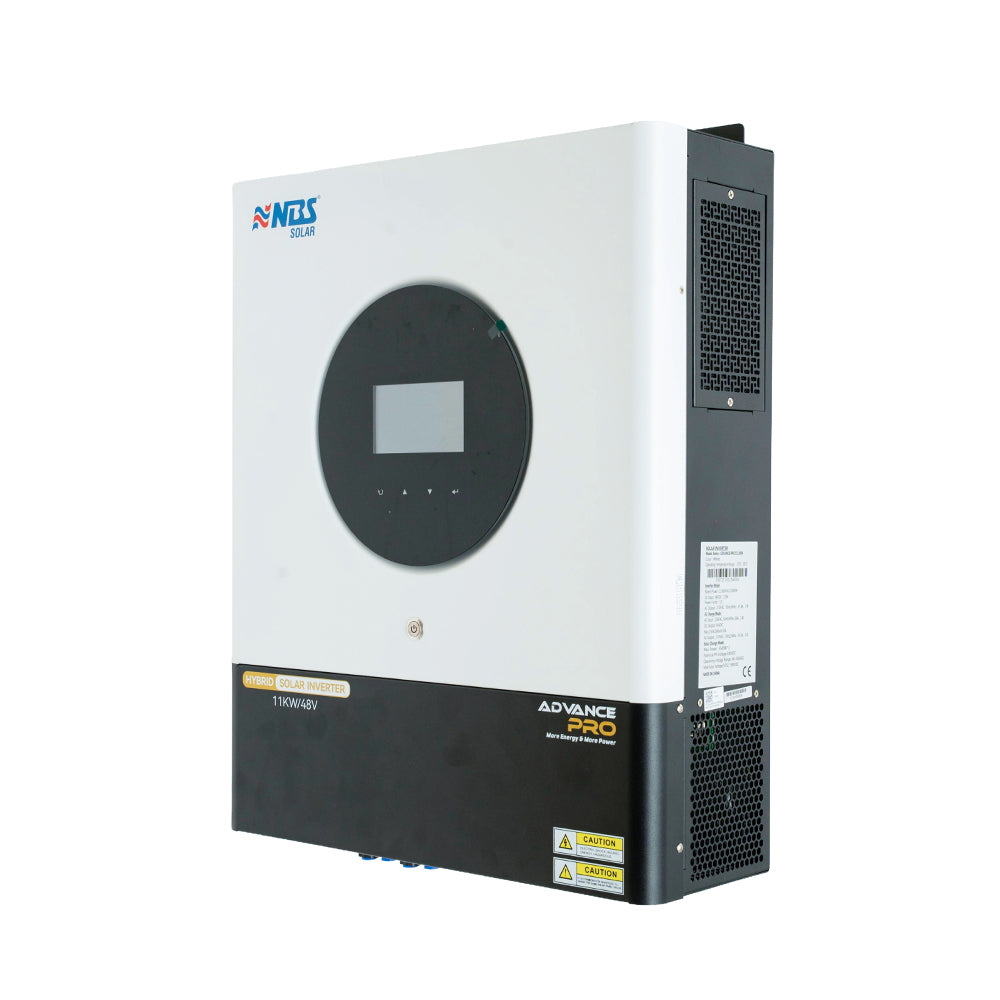

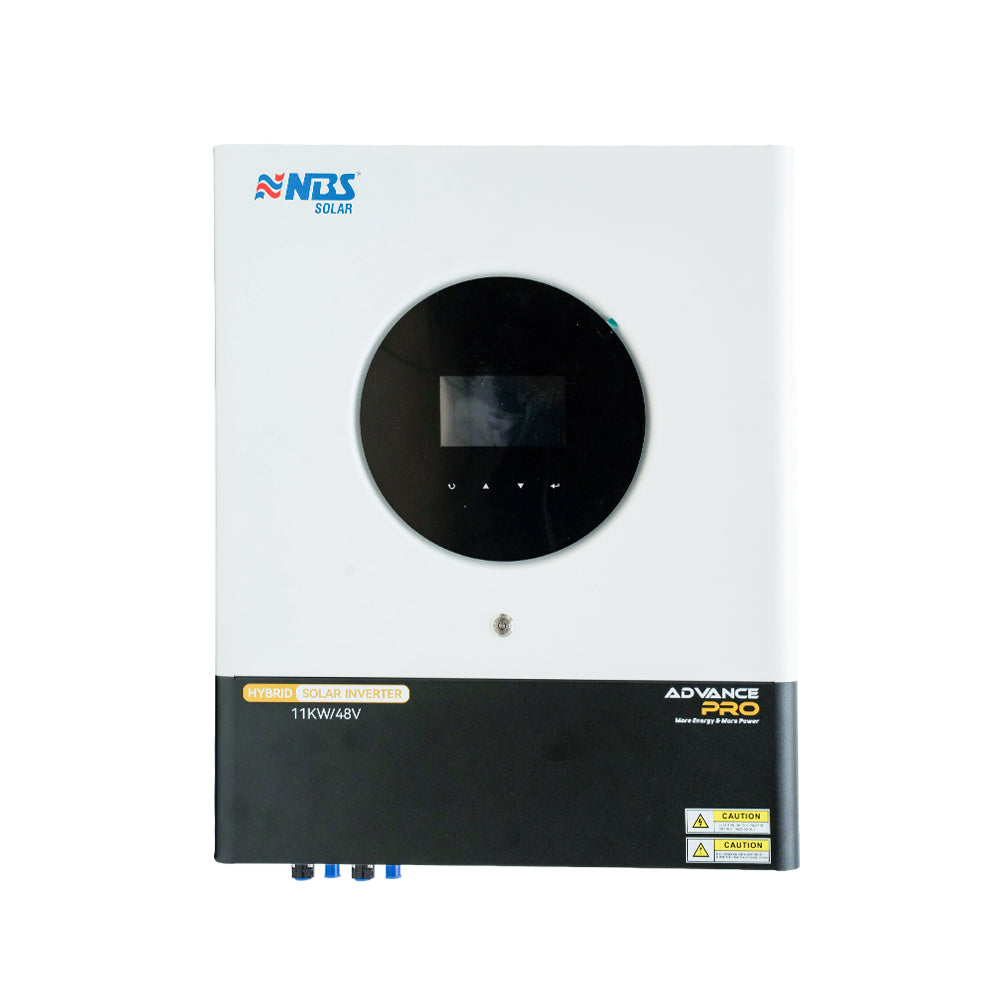

NBS SOLAR W/M HYBIRD INVERTER ADVANCE PRO II 11KW/48V
Choose options
- Inverter (AC Output)
- Rated Output Power:11 kW
- Output Voltage:220/230/240 V AC (Single Phase)
- Output Frequency:50/60 Hz (Auto)
- Power Factor:1.0
- AC Overload Capacity:150% for 1 minute
- Waveform:Pure Sine Wave
- DC Input / Battery
- Battery Voltage:48 V DC
- Battery Type Support:Lead-acid, AGM, Gel, Lithium (BMS communication optional)
- Max Charging Current:120–180 A (Configurable)
- Charging Method:3-Stage (Bulk/Absorption/Float)
- Solar PV Input
- PV Input Power:11–14 kW recommended
- Max PV Input Voltage:450–500 V DC
- MPPT Tracking Range:120–430 V DC
- No. of MPPT Trackers:2
- Max PV Input Current:18–22 A per MPPT
- MPPT Efficiency:≥ 98%
- Grid Input
- Grid Voltage Range:170–280 V AC
- Max Grid Charging Current:80–100 A
- Transfer Time:< 10 ms (UPS Mode)
- Efficiency
- Inverter Efficiency:up to 95–97%
- PV to Load Efficiency:up to 98%
The NBS Advance Pro II 11 kW 48 V is a next-generation hybrid energy storage inverter designed for demanding residential, commercial, and industrial power applications. Engineered to deliver seamless energy management, the inverter supports both on-grid and off-grid operations, providing reliable backup power and efficient solar energy utilization.
Built with a robust power stage and advanced DSP control technology, the NBS Advance Pro II ensures high conversion efficiency, intelligent battery charging, and real-time monitoring. Its wide PV input range, strong surge handling capacity, and intelligent energy prioritization make it an ideal choice for customers seeking stable, clean, and uninterrupted power.
Key Features
-
Hybrid Operation: Supports on-grid, off-grid, and hybrid modes with seamless transition.
-
High Output Power: 11 kW capacity suitable for homes, offices, and industrial equipment.
-
Dual MPPT Design: Ensures maximum solar harvesting even in partial shading conditions.
-
Smart Battery Management: Compatible with Lithium and Lead-acid technologies.
-
WiFi/GPRS Monitoring: Real-time monitoring for energy flow, battery status, and PV generation.
-
Parallel Support (Optional): Can be paralleled for higher capacity systems.
-
Reliable Backup Power: Fast switchover ensures uninterrupted supply during outages.
-
Surge Handling Capability: Can handle high-power inductive loads like motors, pumps, and compressors.
-
Advanced Protections: Comprehensive safety features ensure system longevity.
-
User-Friendly Interface: LCD display with intuitive navigation & status indicators.
Protection
-
Overload Protection
-
Short-Circuit Protection
-
Over-temperature Protection
-
Battery Reverse Polarity Protection
-
PV Overvoltage Protection
Communication
-
RS485 / CAN / USB
-
WiFi / GPRS monitoring (optional)
-
Compatible with mobile app & cloud monitoring
Physical
-
Cooling: Intelligent Fan Cooling
-
Installation Type: Wall-mounted
-
Operating Temperature: –10°C to +55°C
