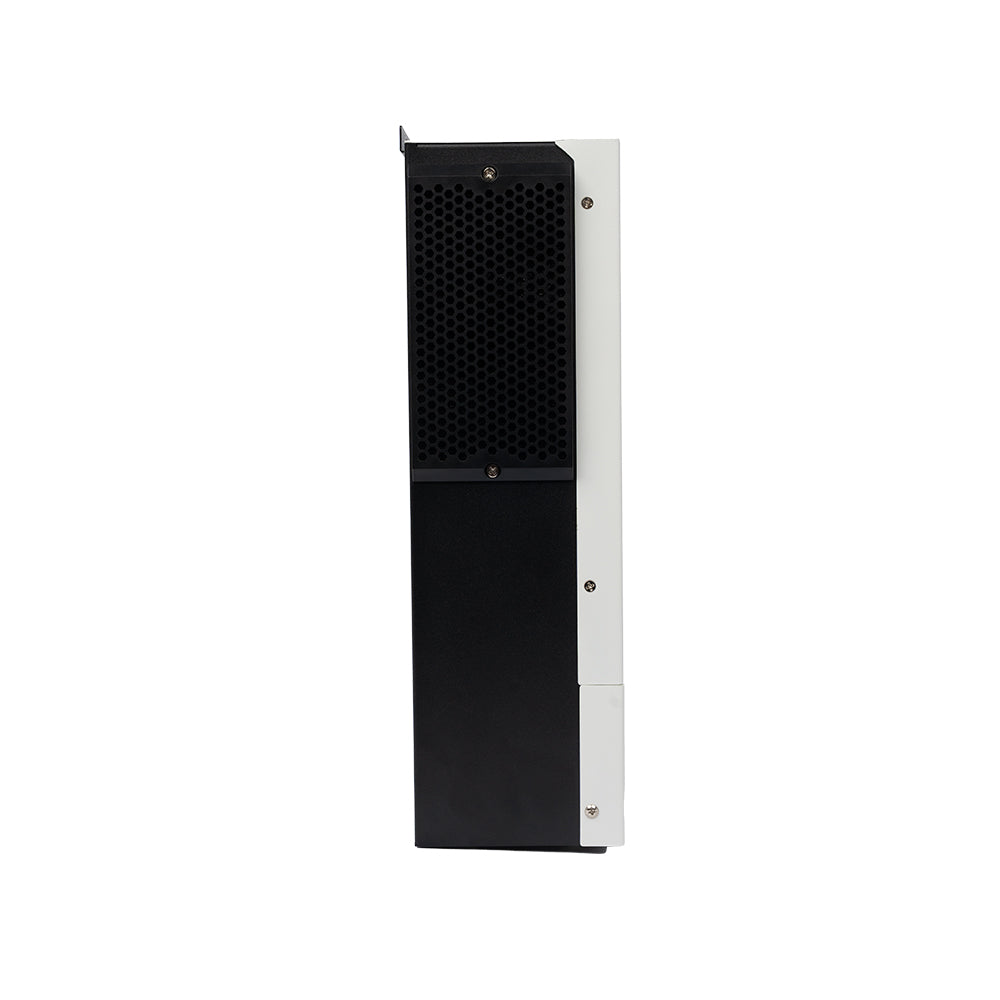

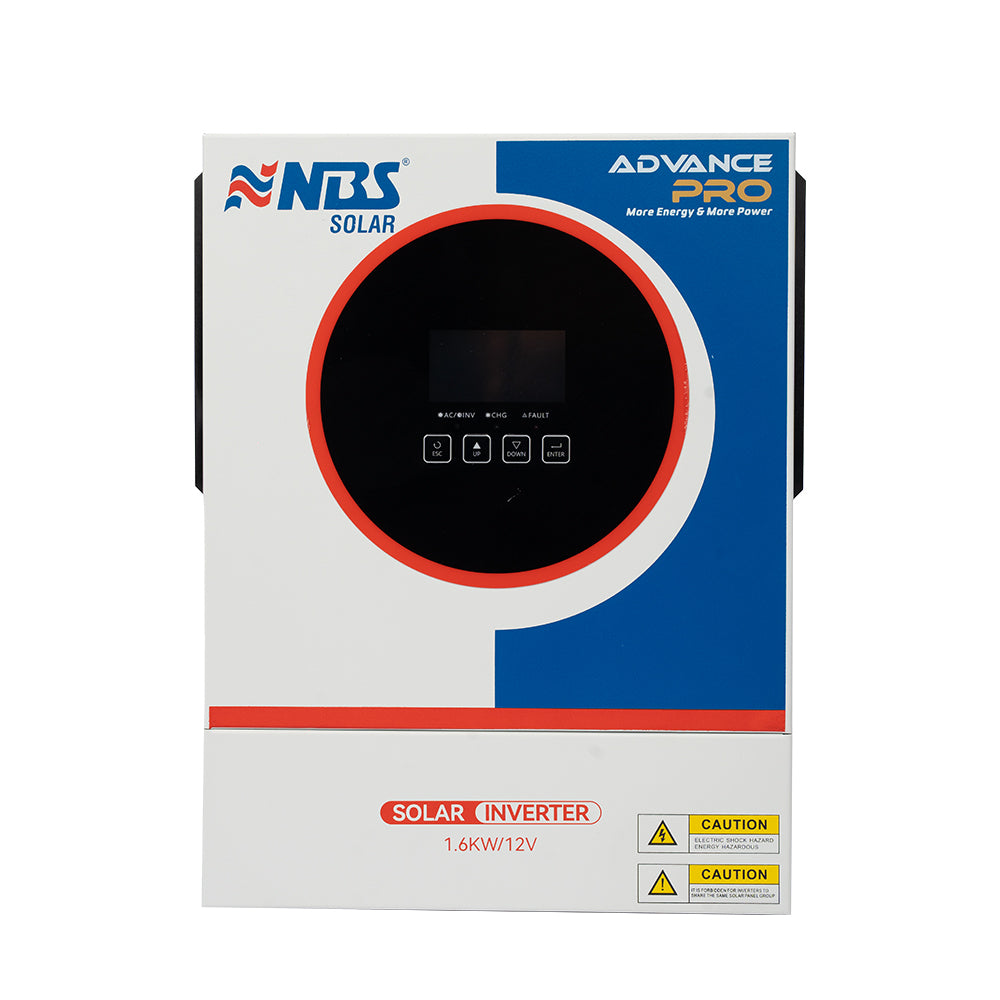

NBS SOLAR W/M HYBIRD INVERTER ADVANCE PRO 1.6KW/12V
NBS SOLAR W/M HYBIRD INVERTER ADVANCE PRO 1.6KW/12V
NBS SOLAR W/M HYBIRD INVERTER ADVANCE PRO 1.6KW/12V
NBS SOLAR W/M HYBIRD INVERTER ADVANCE PRO 1.6KW/12V
NBS SOLAR W/M HYBIRD INVERTER ADVANCE PRO 1.6KW/12V
NBS SOLAR W/M HYBIRD INVERTER ADVANCE PRO 1.6KW/12V

NBS SOLAR W/M HYBIRD INVERTER ADVANCE PRO 1.6KW/12V

AED 500.00

Shipping calculated at checkout

Quantity:
Product Overview
Highlights
  • Model:NBS II PRO Series
  • Rated Power:1600 VA / 1600 W
  • Surge Power:3200 VA
  • AC Input\t
  • Voltage:230 VAC
  • Voltage Range:170 - 280 VAC (Computers); 90 - 280 VAC (Appliances)
  • Frequency:50/60 Hz (Auto-sensing)
  • AC Output
  • Voltage:230 VAC ±5%
  • Frequency:50/60 Hz
  • Transfer Time:10 ms (Computers); 20 ms (Appliances)
  • Peak Efficiency:93%
  • Battery
  • Voltage:12 VDC
  • Floating Charge Voltage:13.5 VDC
  • Overcharge Protection:6 VDC
  • Type:Lithium / Lead-acid
  • Solar & AC Charger
  • Max. PV Open Circuit Voltage:500 VDC
  • Max. PV Power:2000 W
  • MPPT Voltage Range:30 - 450 VDC
  • Max. Solar Charge Current:100 A
  • Max. AC Charge Current:80 A
  • Max. Total Charge Current:100 A
  • General Parameters
  • Operating Temperature:-10 °C to +50 °C
  • Dimensions (D×W×H):334 × 270 × 105 mm
  • Net Weight:5 kg
  • Communication:RS232, USB, CAN, RS485; Optional: WiFi, Bluetooth
Product Description

The NBS II PRO 1.6kW/24V is a versatile hybrid solar inverter designed for small-scale off-grid and optional on-grid applications. It integrates a pure sine wave inverter, a high-current MPPT solar charger, and a battery charger into a compact unit. Ideal for cabins, small homes, RVs, and backup power systems, it efficiently manages solar energy, grid power, and generator input to provide reliable electricity, with features like battery equalization and smart load management options.

Key Features

  • All-in-One Hybrid Design: Combines a 1.6 kW pure sine wave inverter, MPPT solar charger, and AC battery charger in one unit, supporting off-grid and optional on-grid operation for flexible energy use.

  • High-Current MPPT Charging: Features a built-in 100A MPPT solar charger with a wide voltage range (30–450 VDC), capable of handling up to 2000W of solar panels for efficient and rapid battery charging.

  • Battery Equalization Function: Includes a battery equalization feature for lead-acid batteries, which helps to balance the cells and extend the overall battery life cycle.

  • Dual Transfer Time Modes: Offers a fast 10ms transfer time for sensitive electronics like computers and a standard 20ms transfer time for general home appliances, ensuring compatibility with various load types.

  • Smart Load Management (Optional): Supports optional smart load management (4kW/6kW) with a second output, allowing users to prioritize and control non-essential loads, such as water heaters, based on available power.

  • Wide AC Input Range: Accepts a broad AC input voltage range (90–280 VAC), enabling stable operation with unstable grid power or generator sources, making it suitable for areas with poor grid quality.

  • Battery Communication Ready: Equipped with reserved communication ports (RS485, CAN) for Battery Management System (BMS) integration, ensuring safe and optimized charging for lithium batteries.

  • Compact and Lightweight Design: With compact dimensions and a lightweight of only 5 kg, the inverter is easy to install and ideal for applications where space is limited.

  • Flexible Communication Options: Offers standard communication interfaces (RS232, USB, CAN, RS485) and optional WiFi or Bluetooth modules for remote monitoring and system configuration via a mobile app or computer.

  • Multi-Source Input Support: Can draw power from solar panels, the utility grid, or a generator, providing multiple charging sources to ensure the battery is always charged and ready for use.
