NBS SOLAR W/M HYBIRD INVERTER ADVANCE PRO 3.2KW/24V
Brand: Nbs Solar
Sold By Nazeer Basha Syed Mech. & Eng. Equip. Trading Co. LLC
Configurer
Sold By Nazeer Basha Syed Mech. & Eng. Equip. Trading Co. LLC
Sold By Nazeer Basha Syed Mech. & Eng. Equip. Trading Co. LLC

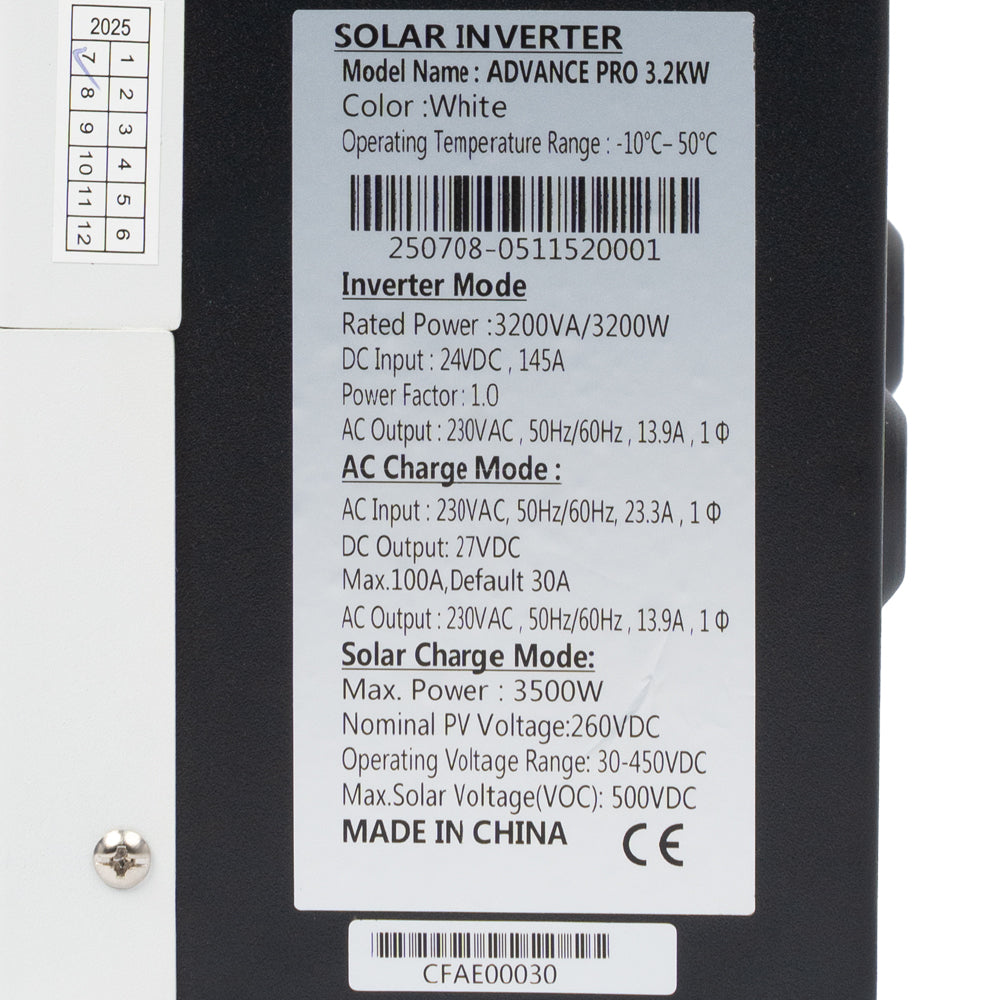

- Model:NBS II PRO Series
- Rated Power:3200 VA / 3200 W
- Surge Power:6400 VA
- AC Input
- Voltage:230 VAC
- Voltage Range:170 - 280 VAC (Computers); 90 - 280 VAC (Appliances)
- Frequency:50/60 Hz (Auto-sensing)
- AC Output
- Voltage:230 VAC ±5%
- Frequency:50/60 Hz
- Transfer Time:10 ms (Computers); 20 ms (Appliances)
- Peak Efficiency:93%
- Battery
- Voltage:24 VDC
- Floating Charge Voltage:27 VDC
- Overcharge Protection:33 VDC
- Type:Lithium / Lead-acid
- Solar & AC Charger
- Max. PV Open Circuit Voltage:500 VDC
- Max. PV Power:3500 W
- MPPT Voltage Range:30 - 450 VDC
- Max. Solar Charge Current:100 A
- Max. AC Charge Current:80 A
- Max. Total Charge Current:100 A
- General Parameters
- Operating Temperature:-10 °C to +60 °C
- Dimensions (D×W×H):334 × 270 × 105 mm
- Net Weight:5.5 kg
- Communication:RS232, USB, CAN, RS485; Optional: WiFi, Bluetooth

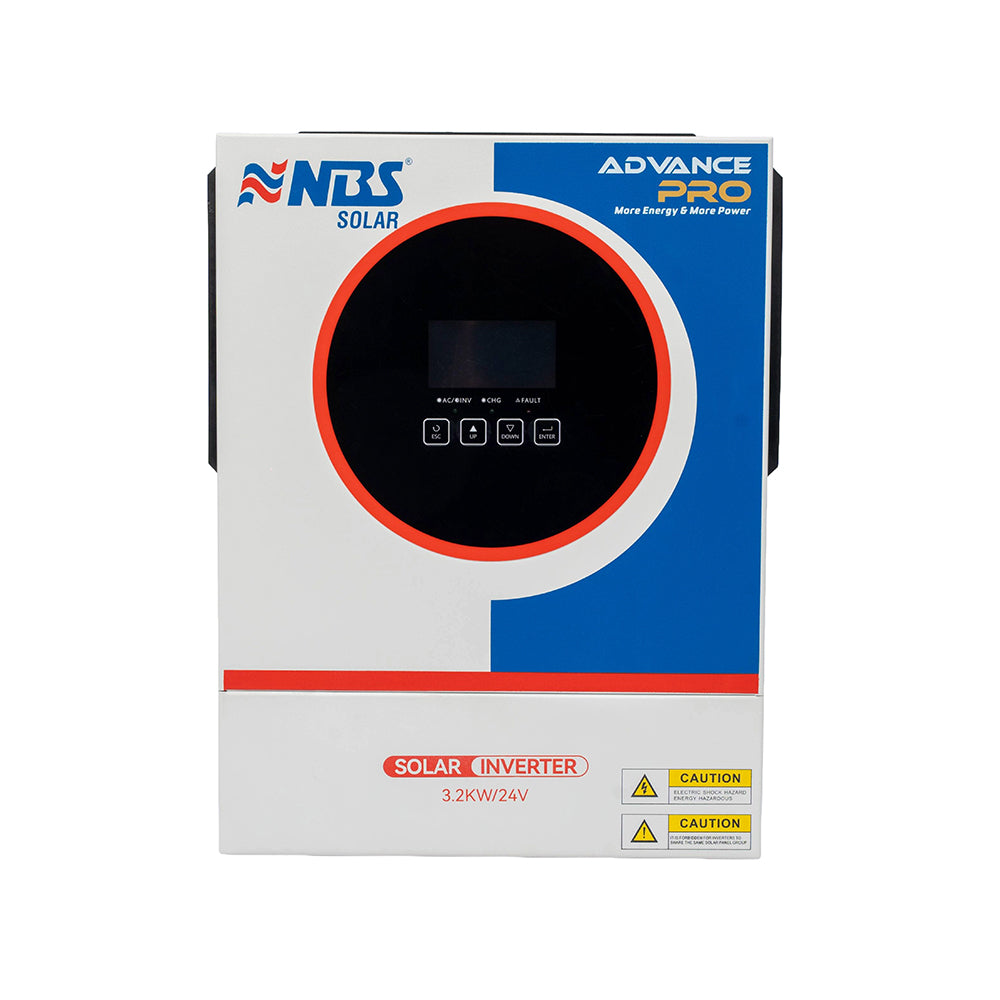

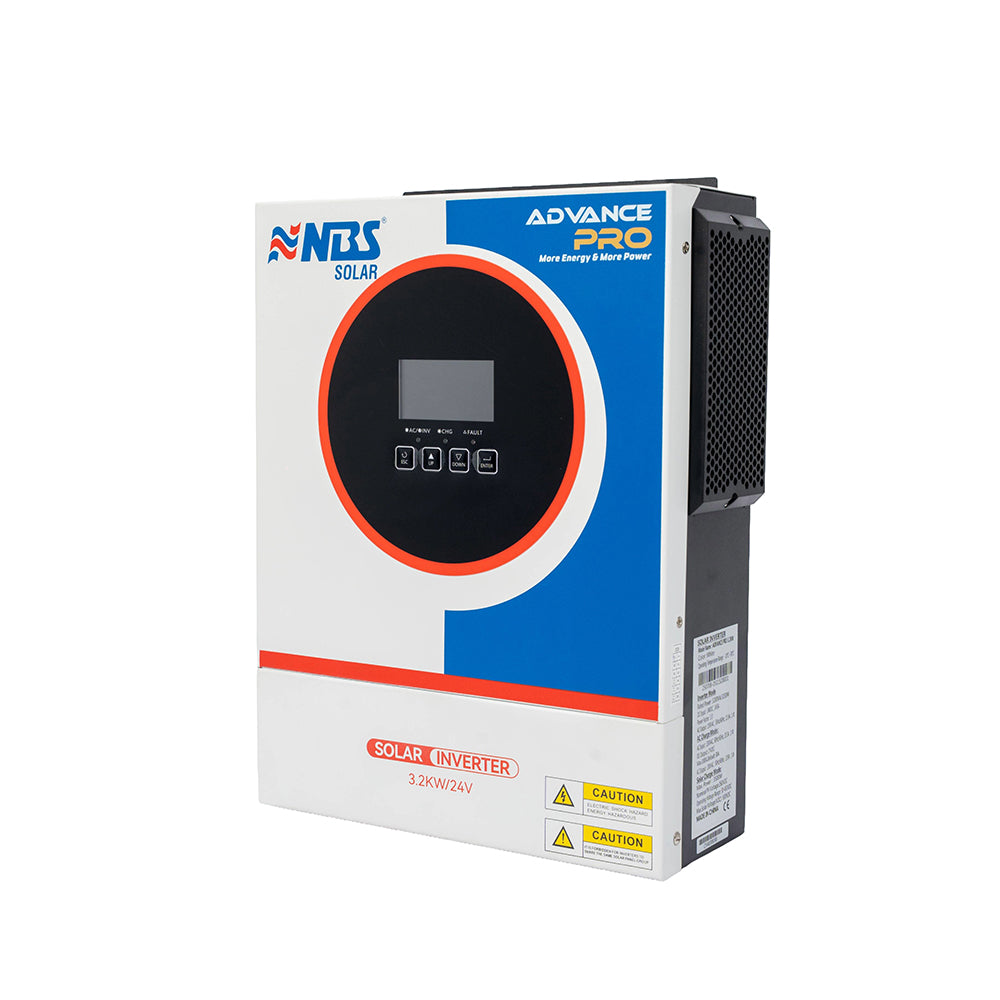

The NBS II PRO 3.2kW/24V is a compact yet powerful hybrid solar inverter designed for reliable off-grid and optional on-grid power solutions. Building on the series' reputation, it integrates a pure sine wave inverter, a high-capacity MPPT solar charger, and an AC battery charger into a single, efficient unit. Perfect for medium-sized homes, workshops, or backup power systems, it seamlessly manages energy from solar panels, the grid, or a generator, providing stable power with features designed to protect and extend battery life.
Key Features
-
Robust Power Output: Delivers a continuous 3.2 kW (3200 VA) of pure sine wave AC power with a high surge capacity of 6.4 kVA, capable of starting and running motor-driven tools, appliances, and other demanding loads.
-
High-Efficiency MPPT Charger: The built-in 100A MPPT solar charger can handle up to 3500W of solar panels, maximizing energy harvest from a wide MPPT voltage range (30–450 VDC) for faster battery charging.
-
Battery Life Extension: Features battery equalization for lead-acid batteries to balance cell voltages and extend the overall battery lifecycle, ensuring long-term reliability and performance.
-
Fast and Adaptive Transfer Switching: Provides a ultra-fast 10ms transfer time for sensitive electronics like computers and a standard 20ms for general appliances, ensuring optimal compatibility and uninterrupted operation.
-
Multi-Source Charging Flexibility: Can charge the battery from both solar panels (100A max) and the AC grid/generator (80A max), with an intelligent system that manages the total charge current up to 100A.
-
Wide Operating Voltage Range: Accepts a broad AC input range (90–280 VAC), ensuring stable performance even with unstable grid power or generator sources, making it ideal for rural or areas with poor grid quality.
-
Lithium Battery Ready: Equipped with communication ports (CAN & RS485) for seamless integration with a Battery Management System (BMS), enabling safe and optimized charging for modern lithium batteries.
-
Compact and Durable Design: Maintains a compact form factor and light weight (5.5 kg) while supporting a higher operating temperature range (up to 60°C), suitable for various installation environments.
-
Remote Monitoring Capability: Offers standard communication interfaces and optional WiFi/Bluetooth modules, allowing for convenient remote monitoring, control, and system configuration via a smartphone app or computer.
-
Optional On-Grid Functionality: Provides the option for on-grid connection, enabling potential energy export (where permitted) and offering flexibility for future system expansion into a grid-tied setup.
